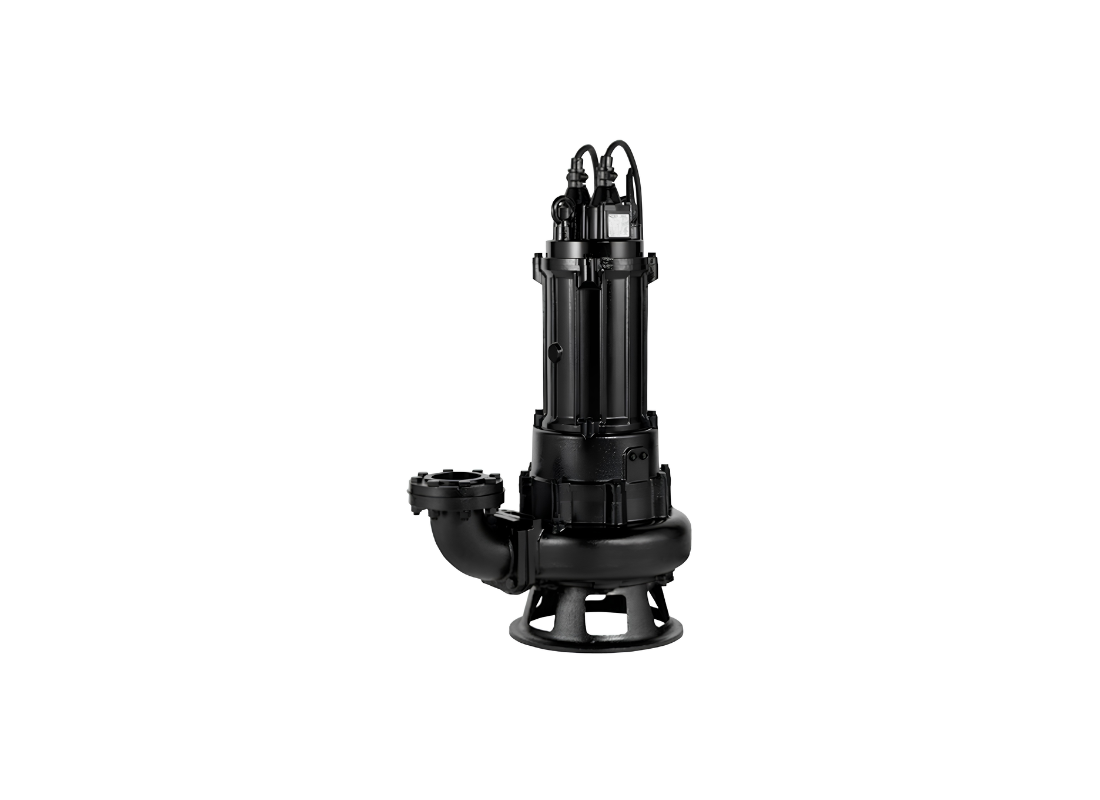

Tsurumi 100C45.5 Gray Cast Iron 4-pole Submersible Cutter Pump for Wastewater with Semi-open Impeller

Engineered for high-capacity municipal pumping and building drainage, the Tsurumi 100C45.5 is a heavy-duty submersible pump designed to process challenging wastewater. This unit excels in submerged sumps where the continuous transfer of sewage laden with fibrous solids is required. Its structural design prioritizes reliability and minimal maintenance, ensuring that critical fluid management systems operate without interruption.

This model is powered by a robust 5.5 kW motor connected to a 415 V three-phase supply, drawing 12 Amps during operation. It delivers an impressive maximum flow of 2290 L/Min and achieves a maximum head of 18.1 m. These performance metrics allow the pump to efficiently manage significant fluid volumes and overcome moderate vertical lifts in municipal and commercial infrastructure.

The fluid handling capability is optimized by a specialized cutting mechanism. A brazed sintered tungsten carbide alloy edge on the semi-open single-channel impeller works in tandem with a serrated suction cover to shred incoming debris. This active cutting process reduces fibrous materials to manageable sizes, ensuring smooth circulation and discharge through the 100 mm outlet.

Built for longevity, the pump features a gray cast iron casing and a ductile cast iron suction cover, suitable for operating in liquids up to 40°C. Motor integrity is protected by dual inside silicon carbide mechanical seals within an oil chamber. The proprietary oil lifter ensures continuous seal lubrication, and the anti-wicking cable entry provides a robust defense against water intrusion.

FEATURES

• Semi-open single-channel impeller with a tungsten carbide alloy edge provides aggressive shredding of fibrous waste.
• Ductile cast iron serrated suction cover works synchronously with the impeller to prevent operational blockages.
• Silicon carbide dual inside mechanical seals offer resistance to wear and heat in abrasive environments.
• Proprietary oil lifter mechanism forcibly supplies lubricating oil to the seal faces for prolonged durability.
• Anti-wicking cable entry effectively prevents internal motor damage caused by capillary water ingress.
• Gray cast iron construction delivers the structural strength required for heavy-duty submerged applications.
• Direct on Line starting configuration facilitates simple and reliable electrical connection and operation.
