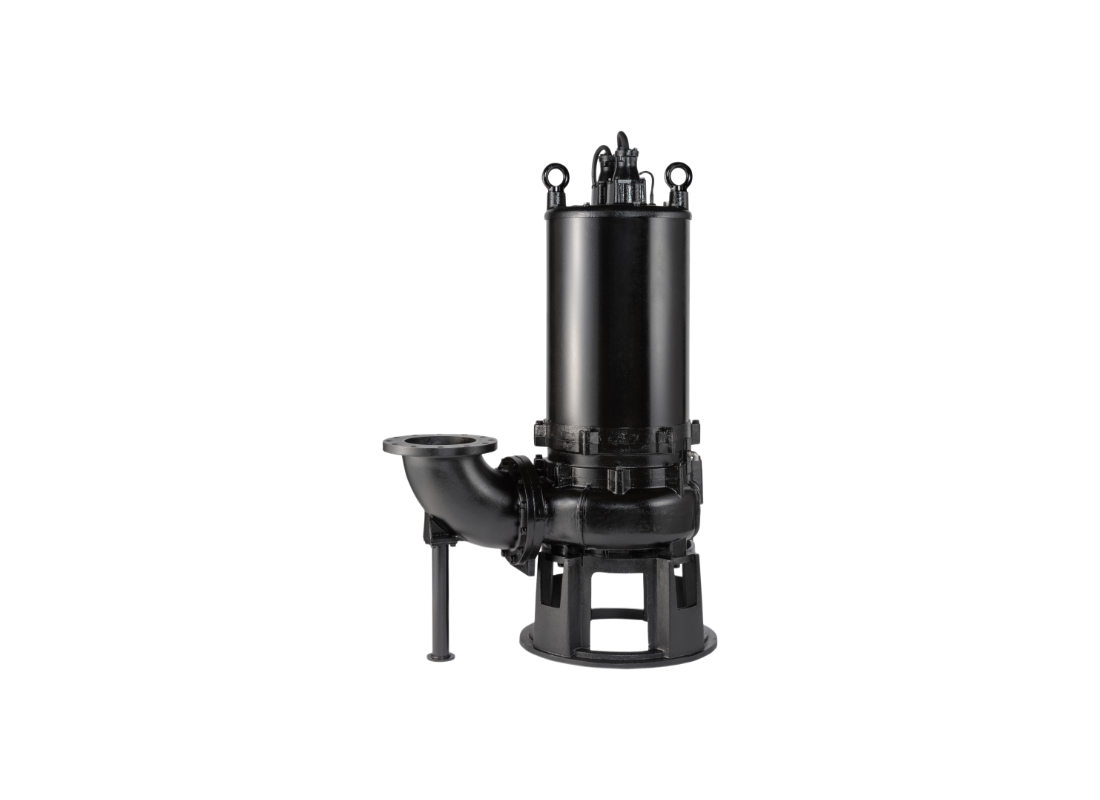

Intended for municipal sewage and heavy-duty industrial applications, the unit is engineered for liquids with temperatures ranging from 0 to 40°C. It is designed for applications where the pump is subject to complete submersion.
Performance specifications reach a maximum total head of 33.5 m and a maximum flow rate of 10000 L/Min at 50Hz. The 37 kW motor draws a rated current of 72 Amps.
This high-output submersible pump operates with a 4-pole dry-type induction motor at a synchronous speed of 1500 min?¹. Activation of the 37 kW motor is facilitated by a Star-Delta starting method for system operation on a 415v three-phase supply. This configuration includes a shrouded two-channel impeller with a 76.2 mm solids passage.
Construction features a Gray Cast Iron JIS FC250 pump casing and 420 stainless steel shafting. This model is supplied as a free-standing unit with a cast iron stand. A guide rail fitting version is available under model code TO250BZ437H, allowing the pump to be connected to or disconnected from the discharge piping by lowering or hoisting the unit.
FEATURES
- Shrouded two-channel impeller with a maximum solids passage of 76.2 mm.
- Double-face mechanical seals with Silicon Carbide faces isolated in a clean lubricating oil environment.
- Tsurumi Oil Lifter forcibly supplies lubricating oil to the mechanical seal and continues supplying oil even if lubricant levels are low.
- Pressure relief port protects the mechanical seal against excessive pressure by drawing abrasive grit away from the faces.
- Miniature thermal protectors embedded in each winding which signal the control panel to shut off power if excessive heat builds up.
- Watertight cable entry with an anti-wicking block protects internal motor components from water incursion.
- Permanently lubricated deep-groove double-shielded C3 ball bearings.
- Protection rated at IP68 for complete submersion in heavy-duty high-head industrial and municipal applications.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
