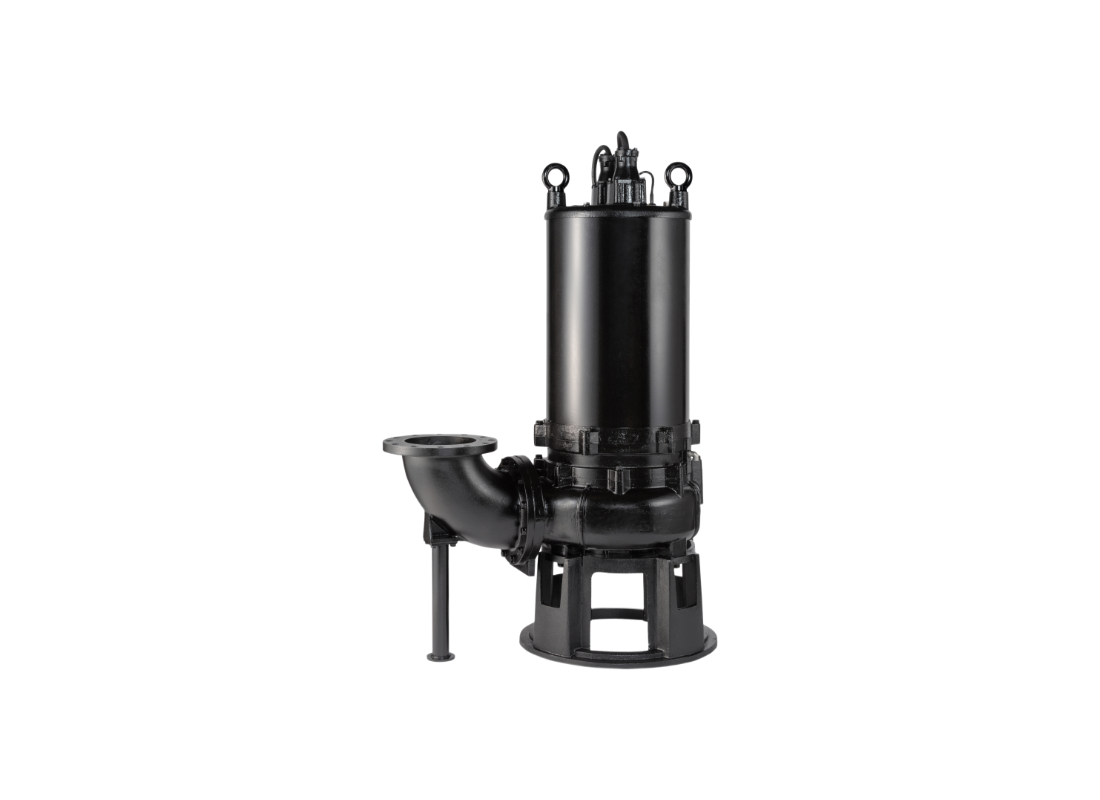

Tsurumi 300BZ437H Cast Iron High Head Submersible Sewage Pump for Wastewater with Two-Channel Impeller

Industrial effluents and high-head wastewater transfer are the intended applications for this submersible unit. It operates effectively in deep processing tanks where the pump is subject to complete submersion and continuous-duty operation. The configuration manages liquids with temperatures between 0 and 40°C carrying substantial suspended solids.

Performance specifications reach a maximum total head of 28 m and a maximum flow rate of 15000 L/Min at 50Hz. Powered by a 37 kW three-phase motor drawing a rated current of 72 Amps on a 415V supply, the pump provides the hydraulic output for 300 mm discharge bores. Electrical activation is managed by an integrated Star-Delta starting method.

The unit features a 4-pole dry-type induction motor with a synchronous speed of 1500 min?¹. A shrouded two-channel impeller for solid-handling design is utilized in the hydraulic assembly, facilitating an 80 mm solids passage size. This configuration manages untreated sewage containing suspended solids of over 3 inches.

Mechanical design utilizes a Gray Cast Iron JIS FC250 pump casing and 420 stainless steel motor shaft. Standard model is free-standing with an integrated cast iron stand. A guide rail fitting version is available under model code TO300BZ437H, which identifies the variant suitable for remote hoisting and inspection without entering the pit.

FEATURES

• Shrouded two-channel impeller for solid-handling design, dynamically balanced.
• Double-face mechanical seal located in oil chamber where both upper and lower seal faces run in a clean environment.
• Tsurumi Oil Lifter forcibly supplies lubricating oil to the mechanical seal and continues to supply the oil to the upper seal faces even if lubricant falls below the rated volume.
• Integrated pressure relief port protects the mechanical seal against excessive pressure and draws abrasive grit away.
• Miniature thermal protectors embedded in each motor winding signal the control panel to shut off power if excessive heat builds up.
• Anti-wicking cable entry block prevents water incursion due to capillary action should the power cable be damaged.
• Permanently lubricated deep-groove double-shielded C3 ball bearings support the rotating shaft.
• Gray Cast Iron JIS FC250 pump casing ensures structural rigidity in industrial environments.
