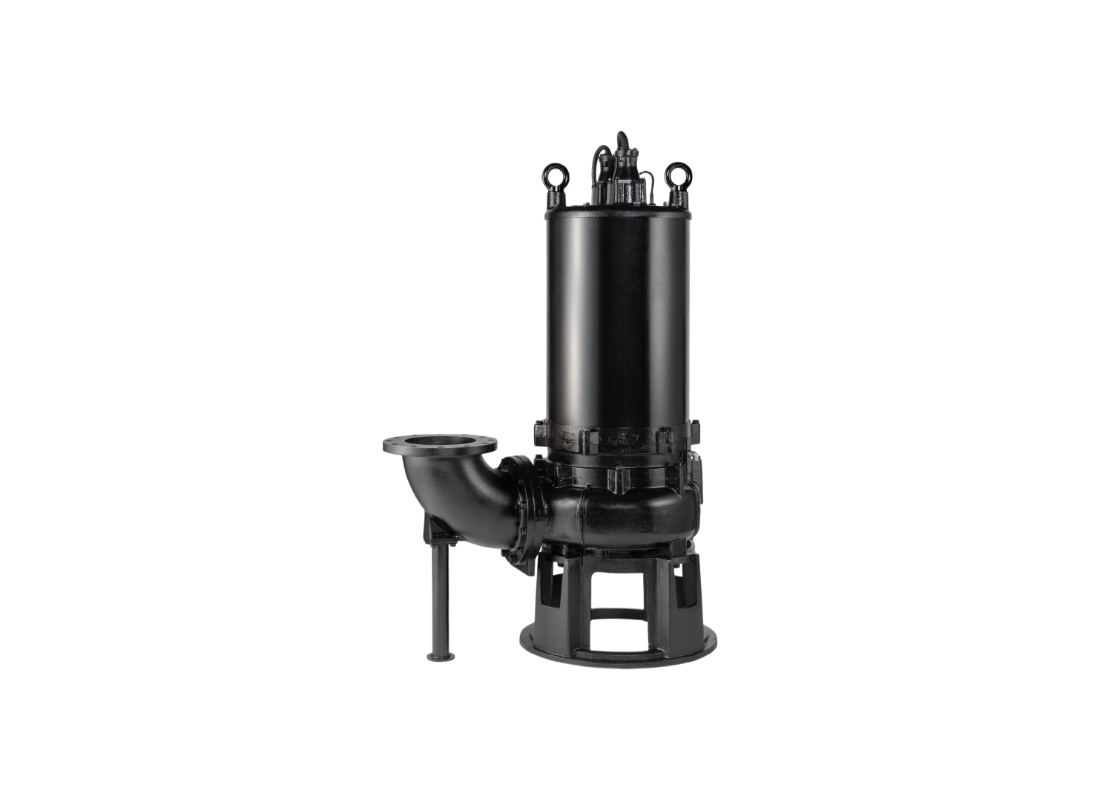

Designed for industrial wastewater treatment and solids handling, this 37 kW model is suitable for continuous-duty operation in liquids from 0 to 40°C. The unit is intended for complete submersion while handling raw sewage, wastewater, and storm water. It is suitable for large-bore collection sumps in municipal processing environments.
Performance specifications reach a maximum total head of 20 m and a maximum flow rate of 18000 L/Min at 50Hz. Drawing a rated current of 79 Amps on a 415V three-phase supply, the 37 kW motor provides the hydraulic output for 300 mm discharge bore transfer tasks.
A 6-pole dry-type induction motor achieves a synchronous speed of 1000 min?¹ for its operating cycles. Motor activation is managed by a Star-Delta starting method, providing a controlled electrical application. This configuration includes a shrouded two-channel impeller for solid-handling design with a maximum solids passage of 90 mm.
Construction features a Gray Cast Iron JIS FC250 pump body and 420 stainless steel motor shaft. Standard supply is a free-standing unit with an integrated cast iron stand. A guide rail fitting version is available under model code TO300BZ637, allowing for easy maintenance and inspection without entering the pit.
FEATURES
- Shrouded two-channel impeller for solid-handling design, dynamically balanced.
- Maximum solids passage of 90 mm for sewage and water carrying solid matters.
- Double-face Silicon Carbide mechanical seal faces isolated in an oil chamber.
- Tsurumi Oil Lifter forcibly supplies lubricating oil to the mechanical seal and continues supplying oil even when the lubricant level falls below the rated volume.
- Pressure relief port protects the mechanical seal from excessive pressure and draws abrasive grit away from the faces.
- Miniature thermal protectors embedded in motor windings signal the control panel to shut off power if excessive heat builds up.
- Anti-wicking cable entry block prevents water incursion due to capillary action should the power cable be damaged.
- Permanently lubricated deep-groove double-shielded C3 ball bearings ensure long-term mechanical stability.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
