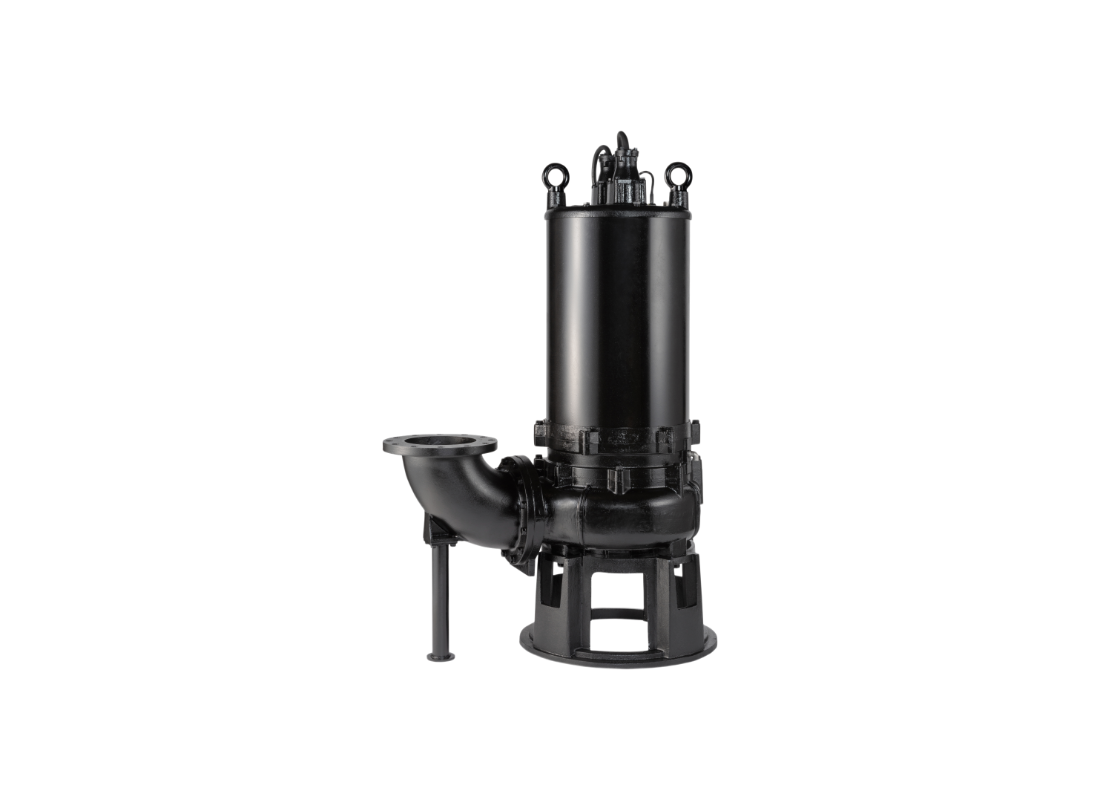

Tsurumi 350BZ637H Cast Iron High Head Submersible Sewage Pump for Municipal Wastewater with Two-Channel Impeller

Untreated effluents and municipal sewage stations are the intended media handled by this heavy-duty submersible pump. It operates effectively in deep sumps where the pump is subject to complete submersion in liquid temperatures between 0 and 40°C. The design focuses on providing reliable continuous-duty service in large-scale wastewater treatment plants.

The performance curve for this 37 kW model indicates a maximum total head of 20 m and a maximum flow rate of 18000 L/Min. Drawing a rated current of 79 Amps on a 415V three-phase supply, the motor provides the hydraulic output for its 350 mm discharge bore. Activation is managed by an integrated Star-Delta starting method.

Operating at a synchronous speed of 1000 min?¹, the 6-pole dry-type induction motor provides power to the hydraulic assembly. A shrouded two-channel impeller for solid-handling design is utilized, enabling a 90 mm solids passage size at 50Hz. This design ensures functional fluid movement through the large-bore discharge piping.

Mechanical hardware consists of a Gray Cast Iron JIS FC250 pump casing and 420 stainless steel shafting for long-term submerged stability. Standard supply is a free-standing unit with a cast iron stand. A guide rail fitting version is available under model code TO350BZ637H, which identifies the variant suitable for remote hoisting and inspection without entering the pit.

FEATURES

• Shrouded two-channel impeller for solid-handling design, dynamically balanced.
• Maximum solids passage of 90 mm for moving raw sewage and suspended matters.
• Double-face mechanical seal located in oil chamber where both upper and lower seal faces run in a clean environment.
• Tsurumi Oil Lifter forcibly supplies lubricating oil to the mechanical seal and continues to supply the oil to the upper seal faces even if lubricant falls below the rated volume.
• Integrated pressure relief port protects the mechanical seal from excessive pressure and draws abrasive grit away.
• Miniature thermal protectors embedded in motor windings signal the control panel to shut off power if excessive heat builds up.
• Anti-wicking cable entry block prevents water incursion due to capillary action should the power cable be damaged.
• Degree of protection rated at IP68 for complete submersion in heavy-duty high-head industrial applications.
