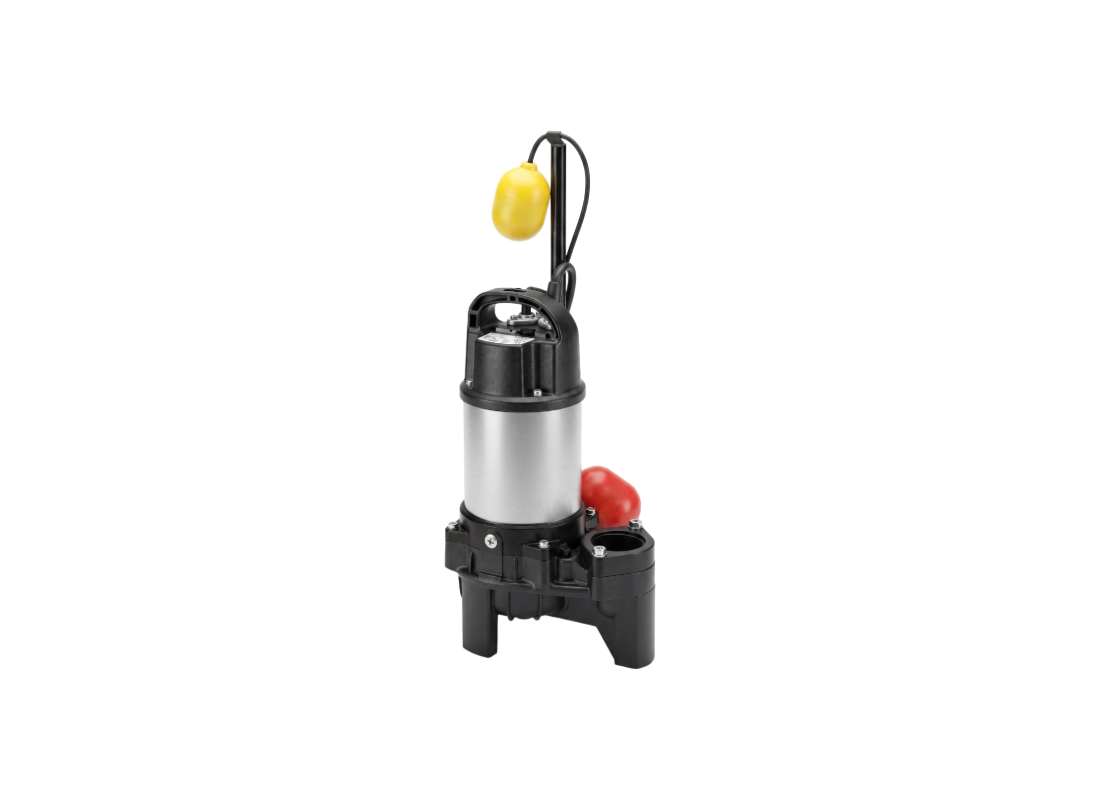

Tsurumi 50PUA2.75 Stainless Steel Automatic Submersible Pump for Wastewater Handling with Vortex Impeller

Automating wastewater management in sumps requires a pump capable of high-head duties and unattended operation. This automatic submersible vortex pump is engineered for managing raw sewage and solids-bearing liquids, featuring automatic level control for hands-free site water management. Its corrosion-resistant frame and 304 stainless steel construction ensure long-term service in aggressive wastewater applications.

Powered by a 0.75 kW / 415v three-phase motor, the pumping system achieves a maximum head of approximately 12.5 m and provides a flow capacity of approximately 360 L/Min. The automatic functionality provides start and stop based on liquid level. This induction motor is continuous-duty rated through a 50 mm discharge bore for stable high-volume transfer.

The hydraulic configuration utilizes a recessed vortex impeller to create a centrifugal whirlpool effect, allowing solids up to 35 mm to bypass the vanes. This design maintains stable hydraulic performance when handling liquids with high concentrations of suspended matter. By minimizing contact between debris and the impeller, the vortex arrangement significantly reduces mechanical stress during intensive automated discharge cycles.

Mechanical integrity is supported by a 304 stainless steel shaft and frame, with a double-face mechanical seal located in an oil chamber featuring an Oil Lifter. Protection is enhanced by a circle thermal protector and an anti-wicking cable entry block that protects the motor from moisture. The unit utilizes non-toxic liquid paraffin as a lubricant, making the pump suitable for sensitive liquid transfer applications.

FEATURES

• Automatic operation provides hands-free management of wastewater and sewage transfer.
• 304 stainless steel and resin construction provide maximum resistance to rust and corrosion in aggressive environments.
• Vortex impeller configuration enables efficient 35 mm solids handling while reducing hydraulic and mechanical friction.
• High-head performance reaching 12.5 m allows for effective liquid transfer in deep sumps and drainage systems.
• Liquid paraffin is used as the lubricant, ensuring the unit is suitable for sensitive liquid transfer applications.
• Patented Oil Lifter technology supplies lubricating oil to the mechanical seal even if the oil level falls to low volumes.
• Double-face mechanical seal operating in an oil chamber provides high-grade protection against abrasion and wear.
• Circle thermal protector built into the motor housing proactively interrupts the circuit during thermal or electrical overload.
