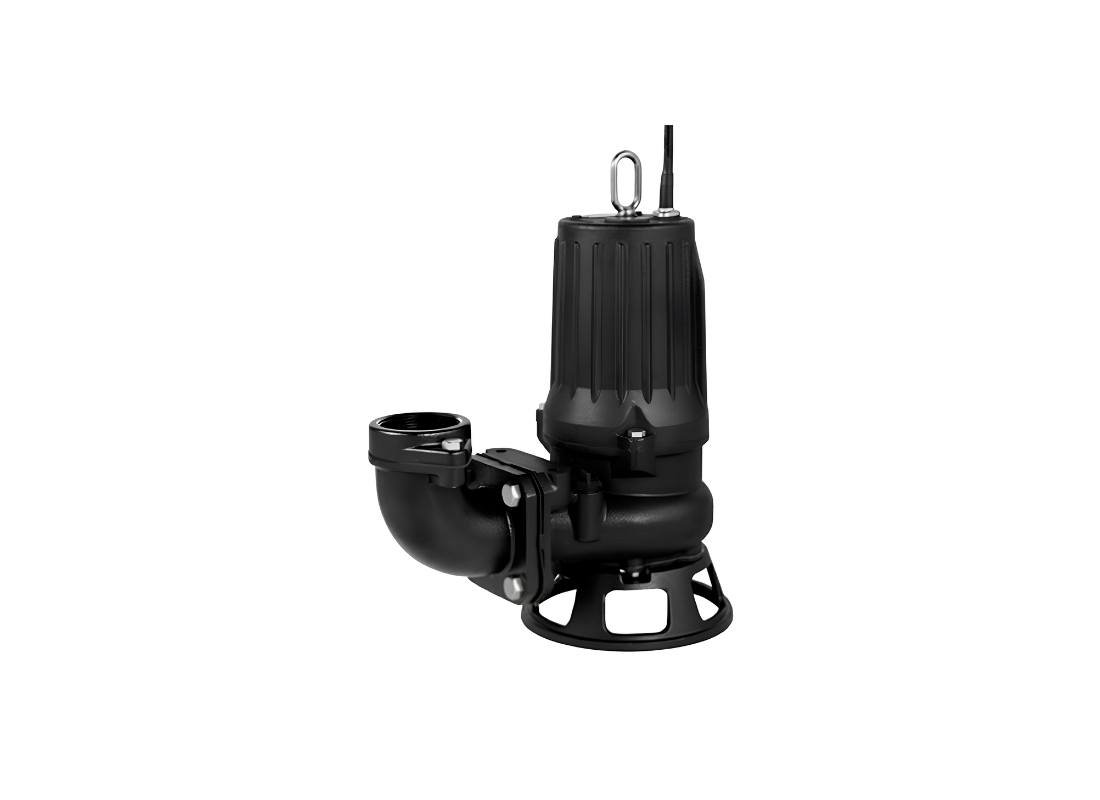

Tsurumi 80C27.5-CR Gray Cast Iron 2-pole Submersible Cutter Pump for Municipal Pumping with Semi-open Impeller

Engineered for rigorous municipal pumping stations, the Tsurumi 80C27.5-CR provides dependable sewage transfer and wastewater management. This submersible unit is designed to operate continuously in challenging environments where fibrous solids and heavy effluents are standard. Its robust construction ensures that large volumes of raw sewage are processed and transported efficiently, minimizing the need for manual intervention.

This model utilizes a 7.5 kW motor driven by a 415 V three-phase power source, drawing 14.6 Amps during operation. The pump is capable of generating a maximum head of 38 m and delivering a maximum flow rate of 1000 L/Min. These substantial performance capabilities allow it to effectively manage heavy fluid loads and overcome significant elevation changes in municipal infrastructure.

The core of its operational efficiency is a highly effective cutting mechanism. A brazed sintered tungsten carbide alloy edge on the semi-open two-channel impeller works against a serrated suction cover to shred incoming debris. This active cutting process ensures that fibrous materials are reduced to manageable sizes, allowing for uninterrupted discharge through the 80 mm outlet.

Built to withstand abrasive conditions, the pump incorporates a gray cast iron casing alongside a high-chromium cast iron impeller and suction cover, operating safely in liquids up to 40°C. Motor integrity is maintained by dual inside silicon carbide mechanical seals within an oil chamber. The proprietary oil lifter ensures consistent seal lubrication, and the anti-wicking cable entry protects against water infiltration.

FEATURES

• Brazed sintered tungsten carbide alloy edge provides aggressive shredding of fibrous municipal waste.
• High-chromium cast iron impeller and suction cover deliver excellent resistance to abrasive wear.
• Semi-open two-channel impeller design optimizes the continuous flow of processed solids and liquids.
• Silicon carbide dual inside mechanical seals ensure reliable protection for the motor shaft assembly.
• Integrated oil lifter maintains continuous lubrication to the mechanical seals under varying conditions.
• Anti-wicking cable entry effectively prevents internal motor damage caused by capillary water ingress.
• Direct on Line starting method facilitates straightforward integration into existing electrical control panels.
