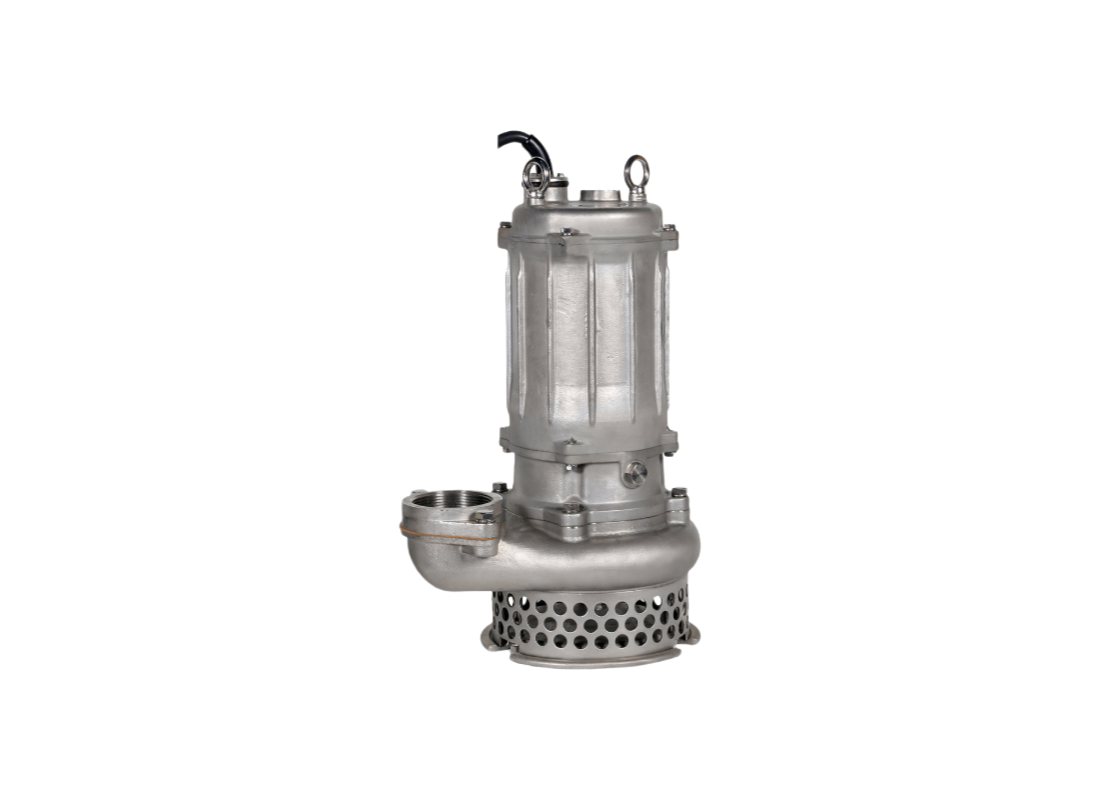

Tsurumi 80SFQ21.5 Submersible Corrosion-Resistant Pump for Mine Dewatering with Semi-open Impeller

Mine dewatering and corrosive industrial wastewater transfer are the primary applications for this submersible corrosion-resistant pump, which excels at handling aggressive liquids and water of a corrosive nature. Its 316 stainless steel casting construction provides outstanding corrosion resistance in harsh environments where standard materials would fail. The unit is a practical solution for transferring wastewater and site runoff in mining, aggregate, and industrial fields.

Driven by a 1.5 kW / 415v motor, the pumping system achieves a maximum head of approximately 21 m and provides a flow capacity of approximately 645 L/Min. This 3-phase induction motor is continuous-duty rated for stable site water management through an 80 mm discharge bore. It handles drainage water with up to 10% dry matter and maintains reliable discharge pressure during drawdown.

The hydraulic design features a semi-open multi-vane impeller made of 316 stainless steel casting to facilitate the passage of solids up to 6 mm. This impeller configuration is dynamically balanced to reduce mechanical wear during high-head duties. The flow path assists the movement of abrasive particles through the pump casing, resisting erosive wear from corrosive site liquids and aggressive sewage.

Mechanical integrity is supported by a double-face mechanical seal with silicon carbide faces isolated in an oil chamber featuring an Oil Lifter. Protection is enhanced by FKM rubber parts and a circle thermal protector built into the motor housing. The unit utilizes a watertight cable entry with an anti-wicking block to protect the motor from moisture incursion, ensuring durability in demanding industrial sumps.

FEATURES

• SCS14 (316 stainless steel casting) construction provides excellent corrosion resistance for handling aggressive sewage and wastewater.
• Dynamically balanced semi-open multi-vane impeller facilitates the displacement of solids up to 6 mm during drainage cycles.
• Silicon carbide faces on both upper and lower mechanical seals offer high durability against abrasion and chemical erosion.
• Proprietary Oil Lifter provides lubrication to the upper seal faces even if the lubricant volume falls to one-third of the rated level.
• Chemical-resistant FKM (FPM) rubber parts ensure longevity when the unit is exposed to acidic or aggressive industrial liquids.
• Anti-wicking cable entry block protects the motor from capillary water incursion should the cable be damaged or submerged.
• Circle thermal protector in the motor housing directly interrupts the circuit during thermal stress or electrical overload.
• 80 mm discharge bore and 1.5 kW motor provide stable hydraulic performance for industrial dewatering and site water management.
