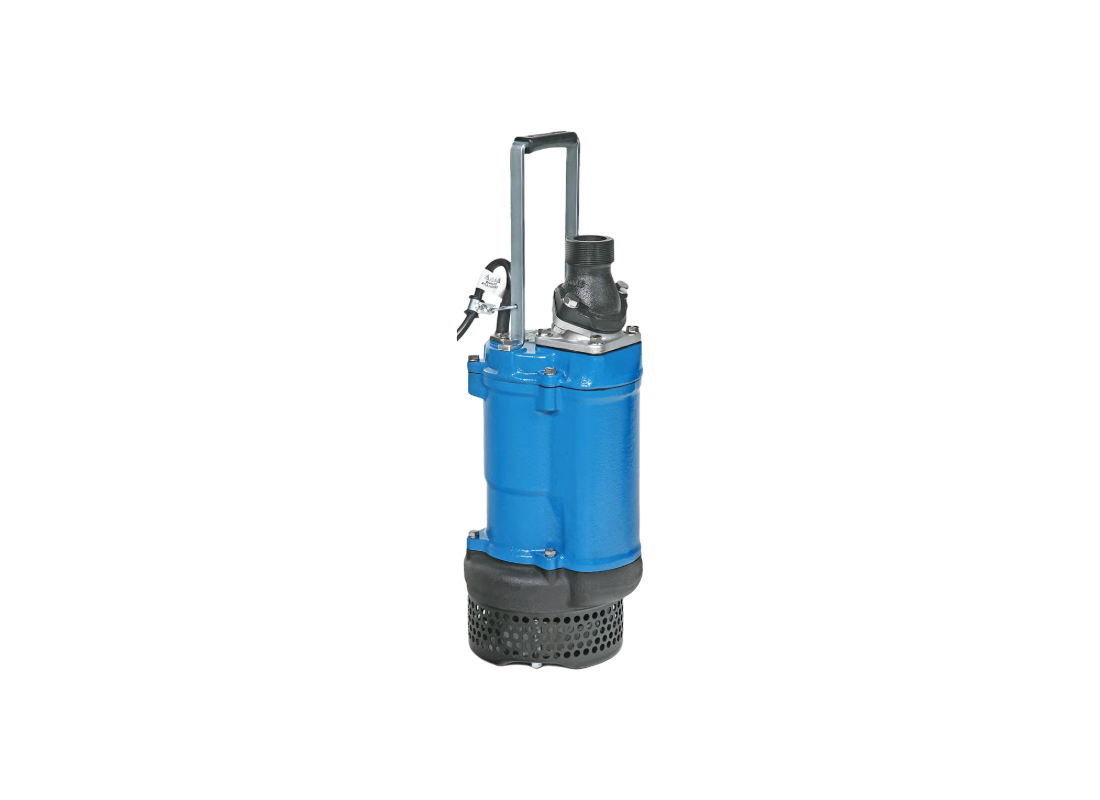

Tsurumi KTZE23.7 Cast Iron Automatic Submersible Drainage Pump for Foundation Dewatering with Semi-open Impeller

Remote pump stations and overnight dewatering operations benefit from this high-output automatic submersible pump's ability to operate without supervision. Electrode-controlled operation automatically starts and stops the unit to prevent dry-running and reduce power consumption by up to 40%. This mechanism contributes to a significantly longer operating life while maintaining safe site water levels.

Equipped with a 3.7 kW / 415v three-phase motor, the system reaches up to approximately 36.5 m of head and up to approximately 450 L/Min flow. This performance provides powerful vertical lift for automatic foundation drainage through a 50 mm discharge. The 2-pole motor operates reliably in drainage fluids containing up to 10% dry matter content within a wide pH range of 5 to 9.

Wear resistance comes from a high-chromium cast iron semi-open impeller designed to resist wear from abrasive particles in suspension. It maintains smooth movement for solids up to 8.5 mm, ensuring that sucked-up site debris is displaced through the housing without settling or causing performance drop-off. Streamlining the internal flow path protects the cast iron housing from localized wear during automatic discharge cycles.

Dual silicon carbide mechanical seals and a side flow cooling mechanism that transfers motor heat to the pumped media provide robust protection. A gray cast iron frame and anti-wicking cable entry block guard against moisture ingress. Optional accessories include a structural steel electrode probe cover to protect critical control components from impact in harsh environments.

FEATURES

• Innovative automatic electrode relay eliminates the need for cumbersome floats and reduces power costs.
• Powerful 36.5 m vertical head makes this automatic model ideal for deep-site foundation dewatering.
• Dry-running prevention mechanism proactively extends pump service life by eliminating air-pumping stress.
• High-chromium iron semi-open impeller provides exceptional resistance to erosion in abrasive site drainage.
• Top discharge, side flow cooling design ensures reliability even when running in air-exposed conditions.
• Dual silicon carbide mechanical seals offer five times higher corrosion and heat resistance than tungsten carbide.
• Patented Oil Lifter ensures seal face lubrication and cooling down to one-third of the normal volume.
• Watertight cable entry with an anti-wicking block protects the motor from capillary water incursion and condensation.
