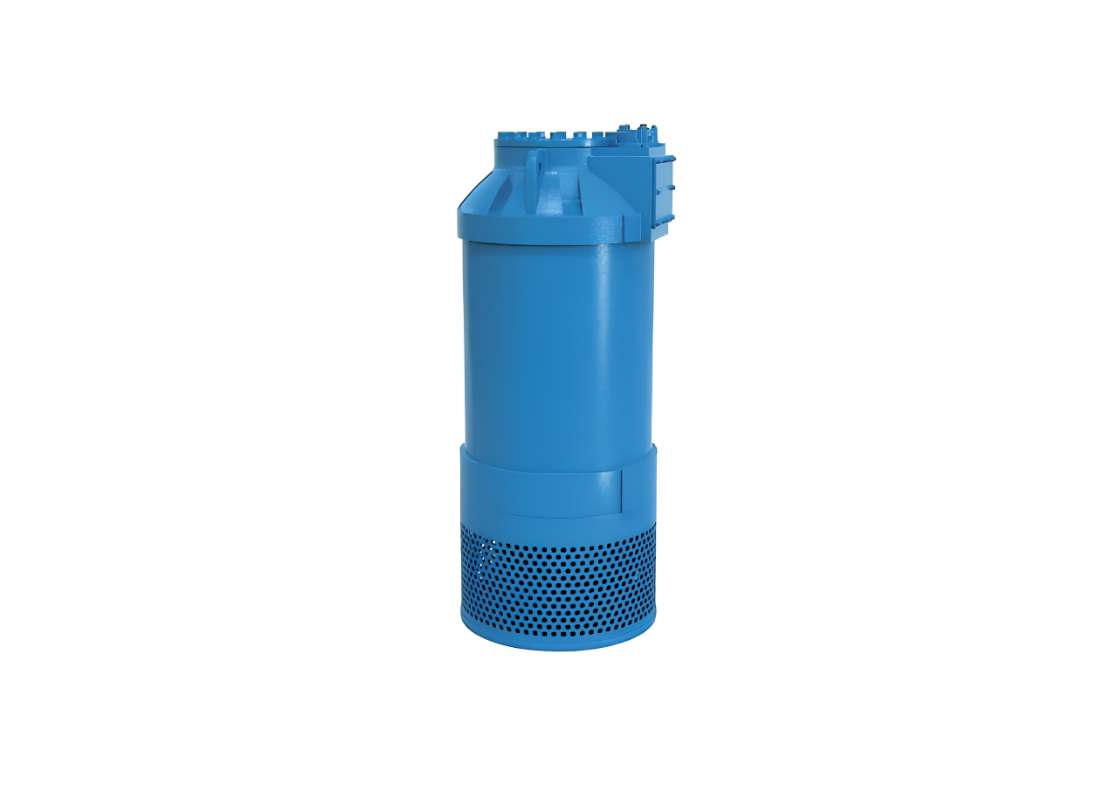

Open-pit mining operations face constant threats from heavy rainfall and groundwater seepage, which can halt production and submerge valuable equipment. The Tsurumi LH10110D is engineered specifically to conquer these high-volume water challenges, ensuring your mine remains operational and safe. Its massive capacity makes it the ultimate defense against large-scale flooding.
Driven by a formidable 110 kW three-phase motor at 415 V, this pump delivers truly staggering hydraulic performance. It is capable of moving an incredible maximum flow of 12000 L/Min while maintaining a solid maximum head of 58 m. This perfect balance of high volume and moderate head is exactly what sprawling, open-cut excavations require.
The secret to its immense flow capacity is the double suction impeller, which powerfully draws water from both the upper and lower sides simultaneously. This innovative design not only maximizes intake but also significantly reduces the thrust load on the internal bearings. The high-chromium cast iron impeller easily handles abrasive sand and gravel up to 20mm in diameter.
Weighing in at 1450 kg, this cast iron titan is built for the harshest environments. Maintenance is streamlined via external grease inlet and outlet plugs, allowing bearing lubrication without dismantling the unit. It also features a comprehensive monitoring system, including both electrode and float-type leakage sensors, to protect the dual inside mechanical seals.
FEATURES
- Draws massive volumes of water from two directions, doubling intake capacity while neutralizing axial thrust loads.
- Allows for quick, in-field bearing lubrication while the pump remains upright, drastically reducing maintenance downtime.
- Employs both electrode and float-type sensors to provide redundant, fail-safe monitoring of the oil chamber.
- Pairs with the impeller to provide exceptional wear resistance against the abrasive sand and gravel found in mines.
- The balanced suction design extends the lifespan of the bearings, ensuring stable, long-term pumping operations.
- Features silicon carbide faces housed in a protective oil chamber to guarantee a watertight barrier for the motor.
