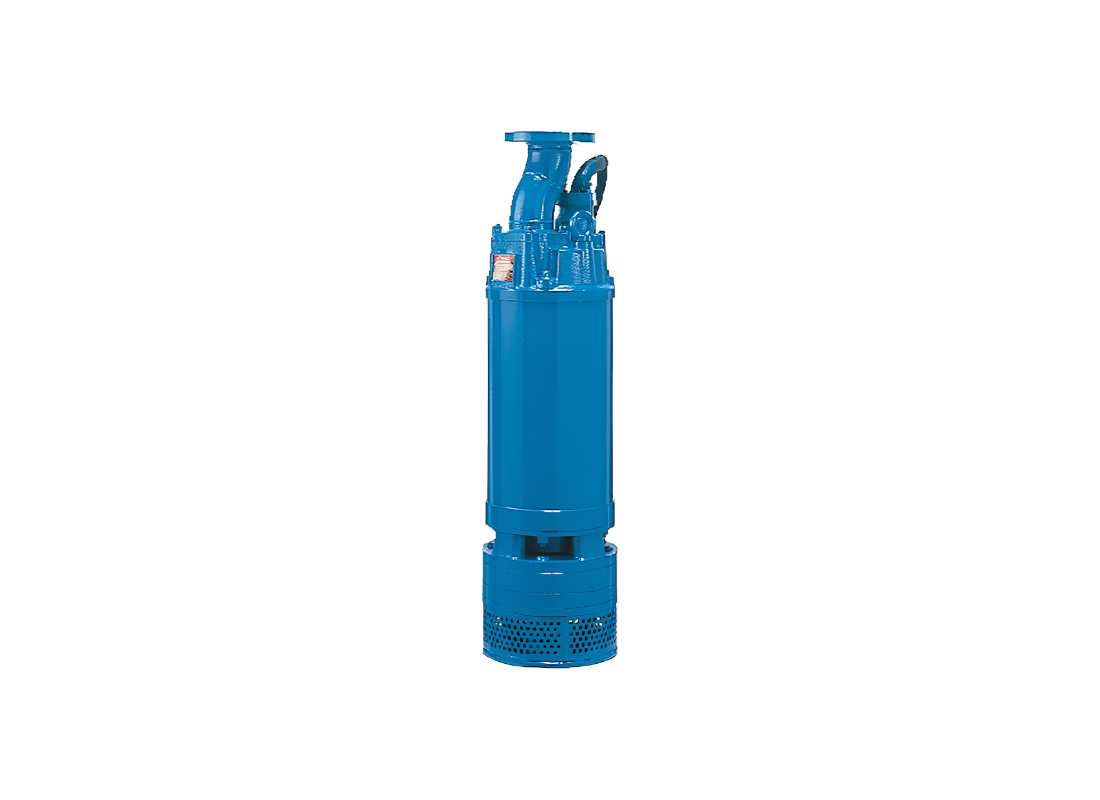

Catastrophic flooding requires an immediate, high-volume response to prevent widespread property and structural damage. The Tsurumi LH430W is an industrial-grade solution designed to move massive amounts of water quickly and efficiently. Its unrelenting performance ensures that even the most severely inundated areas can be reclaimed and stabilized.
This exceptional three-phase pump boasts a 30 kW motor that draws 53 Amps at 415 V. It is capable of achieving a phenomenal maximum head of 123 m and a maximum flow rate of 1230 L/Min. These top-tier specifications make it perfectly suited for extreme lift requirements and rapid large-scale water evacuation.
The hydraulic performance is driven by dual closed impellers made of wear-resistant high-chromium cast iron, allowing the passage of 8.5mm solids. The pump's center-flange, top-discharge construction not only provides a stable installation but also ensures the motor is continuously cooled by the high-velocity water flowing through the outer casing.
Durability is paramount in this 324 kg cast iron unit. It features a sophisticated sealing system with a double-face mechanical seal and pressure relief ports. Instead of a standard circle protector, this model utilizes Miniature Thermal Protectors embedded directly into each motor winding, providing highly responsive and precise temperature monitoring.
FEATURES
- Sensors located directly in the motor windings for instantaneous response to dangerous heat buildup.
- Designed to push massive volumes of water vertically while resisting degradation from suspended abrasives.
- Lower duplex angular contact ball bearings are specifically mounted to absorb extreme axial loads during operation.
- Diverts high internal casing pressures away from the mechanical seal, significantly reducing wear and tear.
- Actively protects the heavy-duty cast iron casing from the damaging effects of galvanic corrosion in submerged environments.
- Forces pumped liquid around the motor for optimal cooling, allowing for safe, continuous dry-run capabilities.
