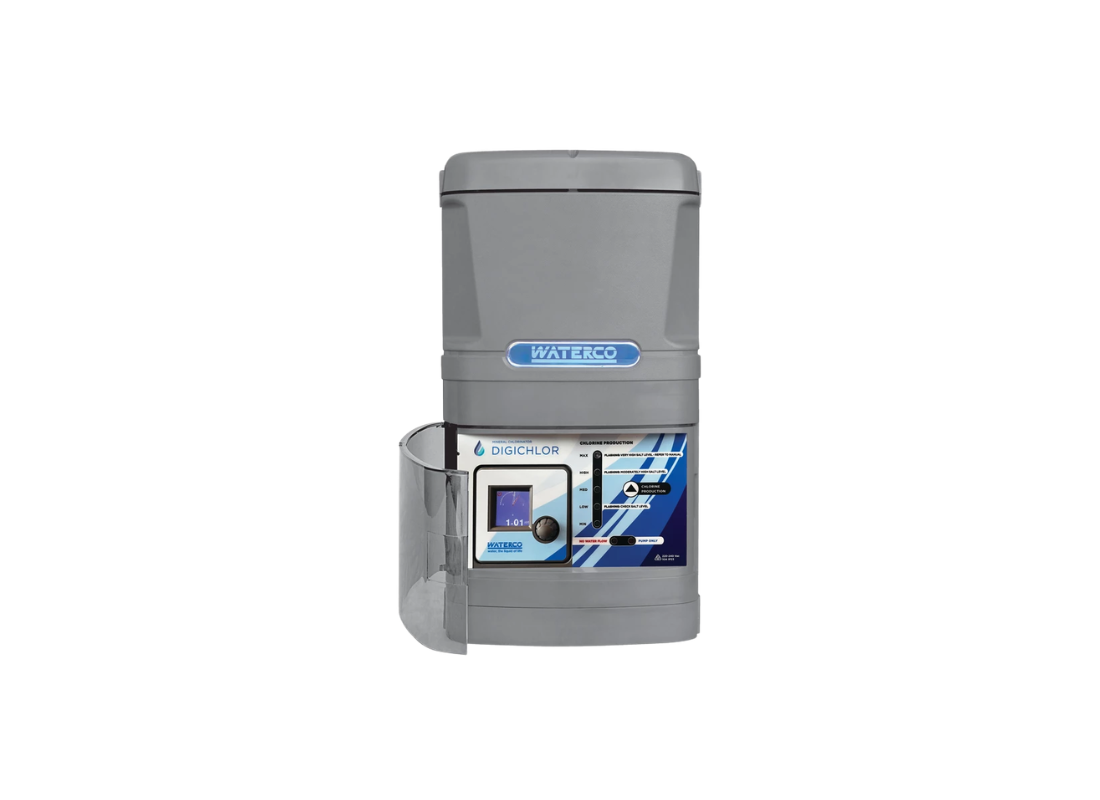

Waterco Digichlor 3000 Premium 30g/hr Chlorinator for Water Balance with Self Cleaning Reverse Polarity Cell

Ensuring material stability is critical when deploying sanitation frameworks in large aquatic networks. The control module of the Digichlor 3000 Premium is securely encased within a structurally reinforced weather-proof external housing to prevent environmental intrusion and isolate sensitive switch mode power components from corrosive atmospheres.

Complementing this enclosure is the premium electrolysis chamber, utilizing a highly durable UV stabilised engineering plastic cell material configuration to withstand intense hydraulic loads. Pushing a massive chlorine output production of 30 g/hr, the system incorporates an internal serial parallel cell design that enhances gas production rates.

The operating salinity limit is maintained optimally at 5,500 ppm, operating safely within a strictly enforced range of 4,000 ppm minimum to 6,000 ppm maximum. Structurally supported by an unobtrusive cradle design, the unit is hydraulically optimised to facilitate smooth internal fluid paths throughout the primary active treatment cycle.

By meticulously minimising flow restrictions, the precision casting naturally limits the potential for restrictive calcium build-up. The inclusion of solid brass pin quick connectors ensures reliable power transmission from the control board to the active electrode plates, significantly reducing electrical resistance and preserving the hardware.

• Features a robust 30 grams per hour premium chlorine output capacity highly capable of supporting dynamic high-volume aquatic treatment facilities.
• Operates efficiently utilizing exactly 130 watts of primary input power to maximize the system's advanced switch mode electrical conversion framework.
• Engineered to confidently support massive aquatic networks boasting a maximum pool capacity of 100,000 litres in moderate temperate climate zones.
• Utilizes a strict maximum 10 Amp total current safety threshold to actively prevent dangerous electrical overloading during intensive peak operation.
• Operates efficiently with a strict 20V DC internal cell voltage parameter to highly optimise the ongoing premium electrolytic conversion process.
• Incorporates standardized 50mm rapid connection plumbing ports to enable seamless integration directly into the primary filtration circuit pipework.

Warranty: 3-year residential and 1-year commercial coverage for power pack and chlorinator cell.
