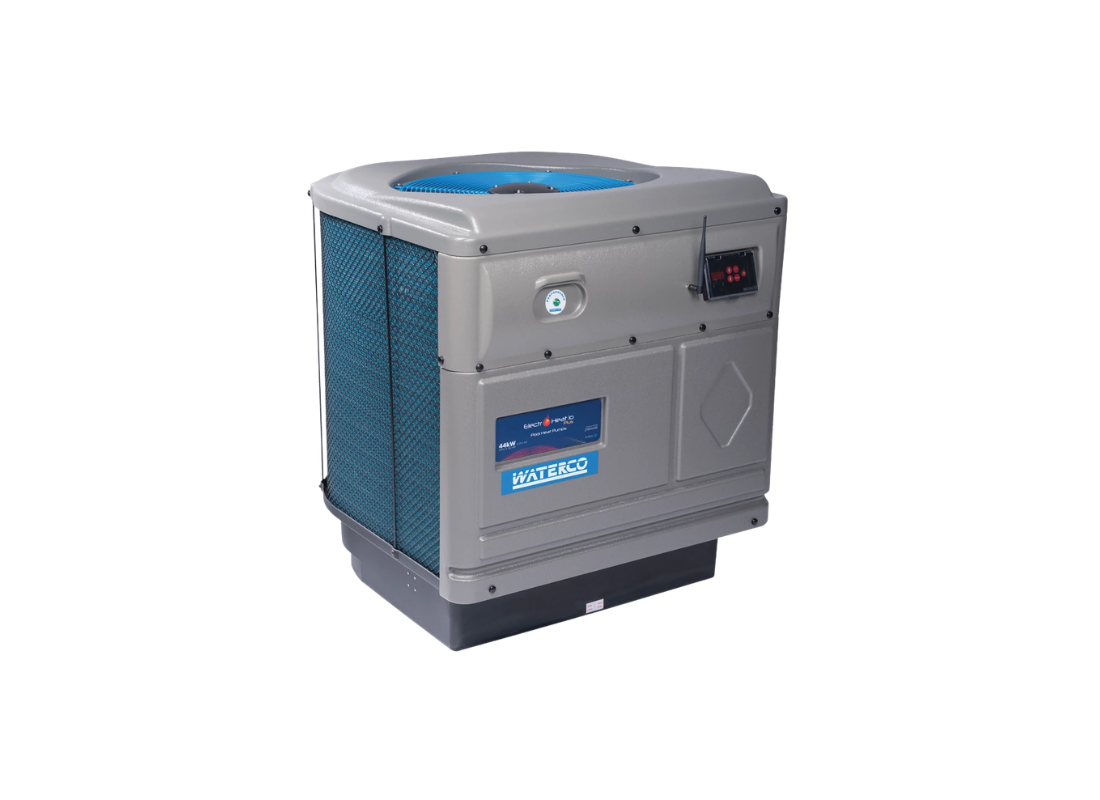

Waterco Electroheat Plus MK3 25kW Heat Pump for Aquatic Center Heating with Titanium Heat Exchanger

Maintaining aquatic environments under extreme operational load challenges requires continuous thermal regulation. Facilities face massive heat deficits during peak usage, demanding robust equipment that recovers temperature losses rapidly. Advanced atmospheric extraction allows operators to stabilize the water climate effortlessly without relying on expensive electric element grids.

Operating with a Heating Capacity of 25 kW, this unit delivers substantial thermal output. The system achieves an exceptional COP of 4.9, translating electrical input into high thermal gains. Utilizing a Power Consumption of 5.0 kW, it balances aggressive heating with sensible power draw. It requires a rigidly controlled Three-Phase/415v electrical framework to function optimally.

The internal process captures latent ambient heat, transferring it directly into the circulation loop. Utilizing advanced R410A refrigerant within its closed architecture maximizes thermal conductivity. Optimized fluid dynamics ensure internal pressure barriers remain completely intact, preventing mechanical fatigue during relentless and prolonged commercial operating windows.

Integration is streamlined via standard 40 mm plumbing connections, supporting approximately 120 to 230 L/Min of flow. Vertical ventilation expels exhausted cold air upwards, preventing recirculation. Precise airflow management ensures the evaporator array consistently receives fresh ambient warmth for uninterrupted daily performance and superior environmental climate adaptation.

• The dual coil titanium exchanger resists chemical degradation from heavy salt, iodine, and commercial chlorinators.
• An integrated LED diagnostic controller manages critical compressor delays while monitoring incoming fluid levels.
• The resilient weatherproof polymer cabinet provides environmental resistance while dampening acoustic vibrations.
• Hydrophilic blue fin technology coats the primary extraction fins, improving resistance against coastal salinity.
• A centrifugal fan assembly maximizes atmospheric draw across the 1.22 square meter ambient collection surface.
• Structural dimensions measure 750 mm in width by 850 mm in length and 1000 mm in height for the main housing.

Backed by a standard 1 Year manufacturer warranty. Please refer to official documentation for complete commercial and residential coverage terms.
