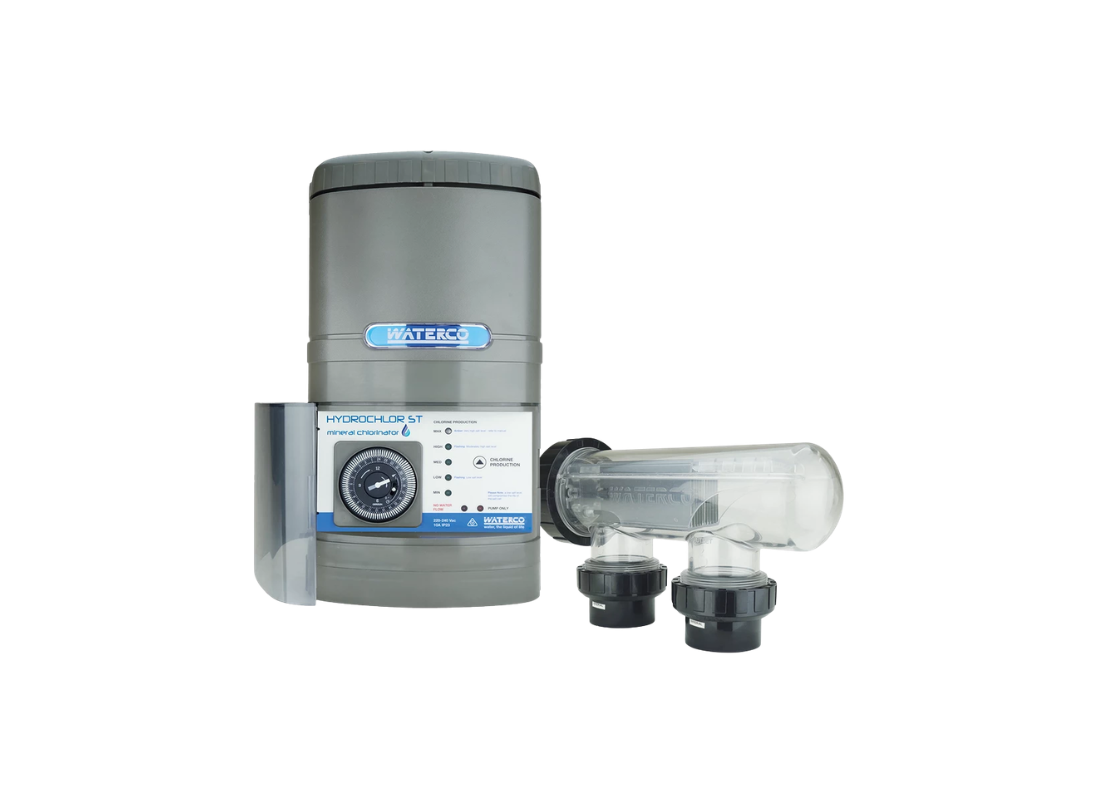

Waterco Hydrochlor MK3 2000 Premium 20g/hr Chlorinator for Water Chemistry Balancing with Digital Timer Control

Addressing the long-term operational costs of aquatic centers, the Waterco Hydrochlor MK3 2000 Premium relies on highly advanced switch mode power technology. By drawing significantly less current, the unit increases internal power conversion while drastically reducing energy wastage. This ensures consistent, premium microbiological control without artificially inflating seasonal utility expenses.

Generating a continuous active Chlorine Output Production of 20 g/hr, this premium configuration expertly manages pool capacities up to approximately 60,000 liters. Operating on a single-phase 240 V connection, the intelligent Hydrochlor MK3 2000 Premium controller demands only 105 W of input power. This highly refined electrical architecture ensures a steady 5.4 A direct current output to the primary cell.

The premium serial parallel cell handles maximum water throughput flow via standard 50 mm inlet and outlet connections. To prevent severe calcium scaling across the active plates, the system requires an operating Salinity Limit between 4,000 ppm and 6,000 ppm. Maintaining this optimum concentration target keeps the cell voltage securely stabilized at exactly 21 V for pure sanitiser gas synthesis.

Equipment containment and safety protocols are hardwired into the primary interface. Salt level protection actively monitors the environment, automatically limiting energy output to protect the cell if salinity spikes unexpectedly. Additionally, instantaneous no flow detection completely ceases operation if circulation stops, strictly preventing dangerous gas accumulation in the immediate pipework.

• The clear electrolytic cell utilizes high-quality brass pin quick connectors to establish a completely secure and corrosion-resistant electrical link.
• Features an automated self-cleaning cycle that actively reverses electrode polarity to effortlessly strip away hard calcium build-up from the core plates.
• Includes an intuitive mechanical dial timer mechanism supported by a highly reliable 150-hour battery backup for uninterrupted daily scheduling.
• Constructed with a heavy-duty weather-proof external casing that actively shields internal electronics from splashing, carrying an IP23 protection rating.
• Provides a dedicated pump outlet maximum load capacity of exactly 8 A for direct power synchronization with the primary circulation filtration pump.
• Designed with a compact physical footprint featuring a front width of exactly 200 mm and an overall vertical height measuring 368 mm.

Warranty: 3 years (Power pack and Cell), 1-year Commercial Installations.
