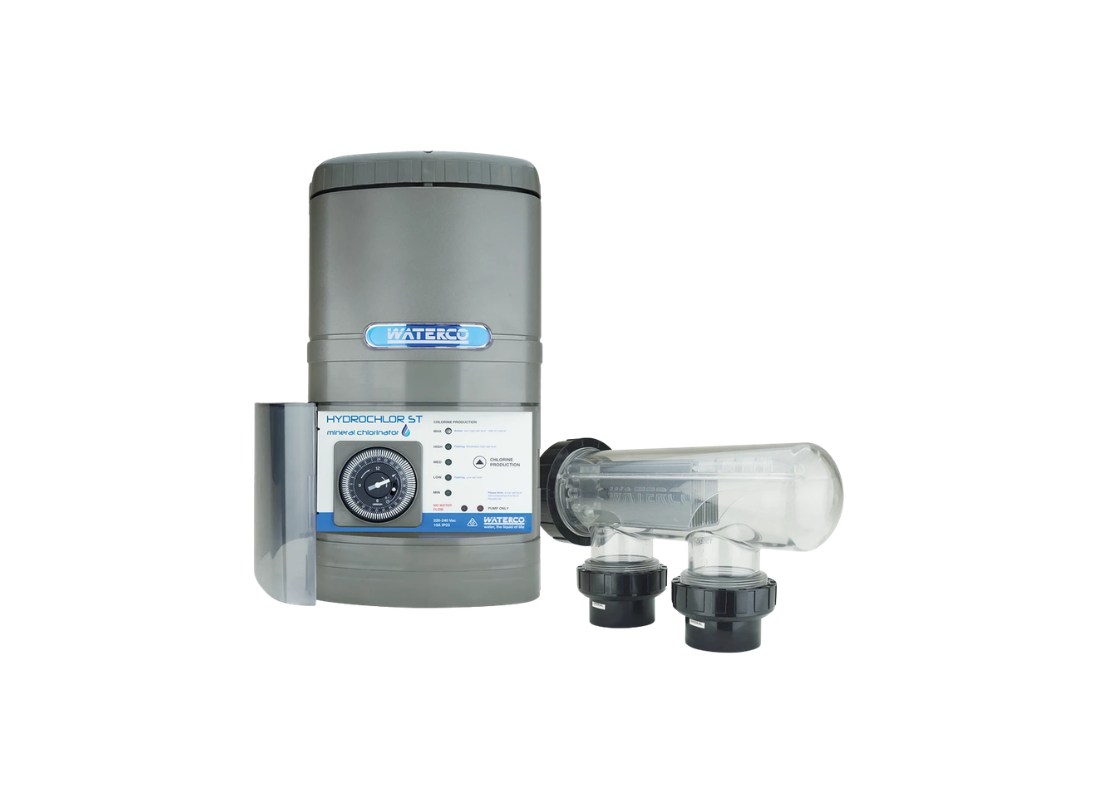

Waterco Hydrochlor MK3 2500 25g/hr Chlorinator for Water Chemistry Balancing with Digital Timer Control

Constructed with durable UV stabilised engineering plastic, the Waterco Hydrochlor MK3 2500 system stands up to harsh elements while providing superior inline microbiological control. By passing dissolved minerals over a multi-plate active array, the system seamlessly converts raw brine into active chlorine. This constant infusion of sanitiser gas ensures your swimming environment remains pristine and therapeutically balanced.

Delivering a robust Chlorine Output Production of 25 g/hr, the Hydrochlor MK3 2500 effectively accommodates heavy bather capacities for pools up to approximately 80,000 liters. Operating on a single-phase 240 V electrical supply, the main control hub requires exactly 115 W of input power. This exceptional energy conversion yields a 5.8 A direct current, producing maximum sanitising output with minimal utility draw.

Standard 50 mm hydraulic connections route maximum water throughput flow directly across the transparent conversion chamber. For optimal lifespan, the specialized cell demands a stable operating Salinity Limit between 4,000 ppm and 6,000 ppm. Maintaining this exact mineral concentration keeps the internal cell voltage fixed at exactly 21 V, minimizing the rapid formation of dense calcium scale across the active synthesis zone.

Active diagnostic sensors continuously monitor the pathway for absolute equipment protection. The intelligent salt level protection circuit limits internal output if the pool exceeds the 6,000 ppm threshold, preventing hardware overloads. Furthermore, if the circulation unit halts, a no flow detection protocol immediately ceases gas generation, illuminating a distinct warning indicator on the primary interface panel.

• Incorporates a large structural lock ring assembly on the clear casing to provide simplified maintenance access without requiring specialized plumbing tools.
• Driven by an intelligent power pack that dynamically recognizes the dimensions of the attached cell to automatically fine-tune its power distribution.
• Features an automated self-cleaning cycle that periodically reverses electrode polarity to actively strip away calcium build-up from the core plates.
• Equipped with a highly intuitive mechanical dial timer featuring an integrated battery backup capable of preserving daily schedules for 150 hours.
• Provides a dedicated pump outlet maximum load capacity of 8 A for direct power synchronization with the primary circulation filtration equipment.
• The electrolytic cell utilizes high-quality brass pin quick connectors to establish a secure and strictly corrosion-resistant electrical link.

Warranty: 3 years (Power pack and Cell), 1-year Commercial Installations.
