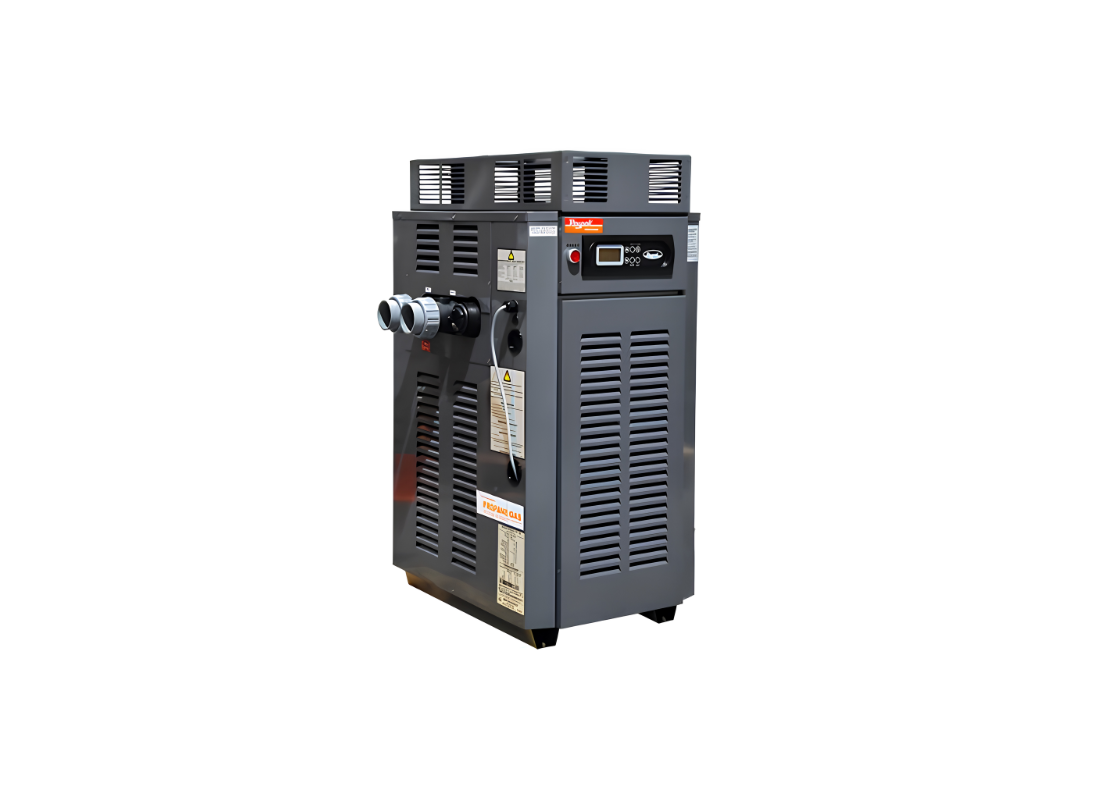

Waterco Raypak 200 LPG RW Gas Pool Heater for Complex Heating with Hot Surface Ignition

Constructed with a powder-coated all-metal casing, this specialized liquid propane heater endures extreme environmental exposures without structural degradation. Combusting fuel via a 185 MJ/h gas input, the unit continuously delivers a highly reliable Heating Capacity of 41 kW across the main filtration loop to ensure consistent comfort.

At the core of its thermodynamic performance sits a premium cupro-nickel heat exchanger, precisely fashioned to optimize thermal transfer. To secure operational longevity, the unit integrates specialized ProTek Shield technology. This active sacrificial anode attracts hidden galvanic corrosion away from vital heating metallurgy.

Internal hydraulic management is optimized through standard 50 mm inlet and 50 mm outlet connections, calibrated to support heavy fluid volumes. This eliminates unnecessary burden on primary circulation pumps. Internal water flow is safely managed by resilient polymer headers that provide resistance against chemical erosion.

Command over the aquatic climate is achieved via a modern microprocessor-driven thermostat, enabling operators to manipulate targeted temperature parameters. The digital interface incorporates active self-diagnostic capabilities, directly generating precise service codes should mechanical deviations occur, ensuring operational safety.

• Physical equipment footprint dictates a 530 mm width and 653 mm depth allowing straightforward integration onto concrete pads.
• Vertical dimensional clearance requires a minimum 1055 mm height allocation strictly accommodating the internal combustion layout.
• Total dry equipment mass measures exactly 70 kgs mandating a secure structural foundation base for permanent installation stability.
• Combustion exhaust venting completely mandates a 175 mm standard diameter flue pipe to effectively evacuate heavy propane gases.
• Incorporates an automated internal pump run-on timer designed specifically for controlled post-heating cooldown mechanical phases.
• Engineered for absolute direct compatibility with remote surface or flush mounted indoor environmental digital electronic control panels.

Warranty: 3 Years Parts / 1 Year Labour
