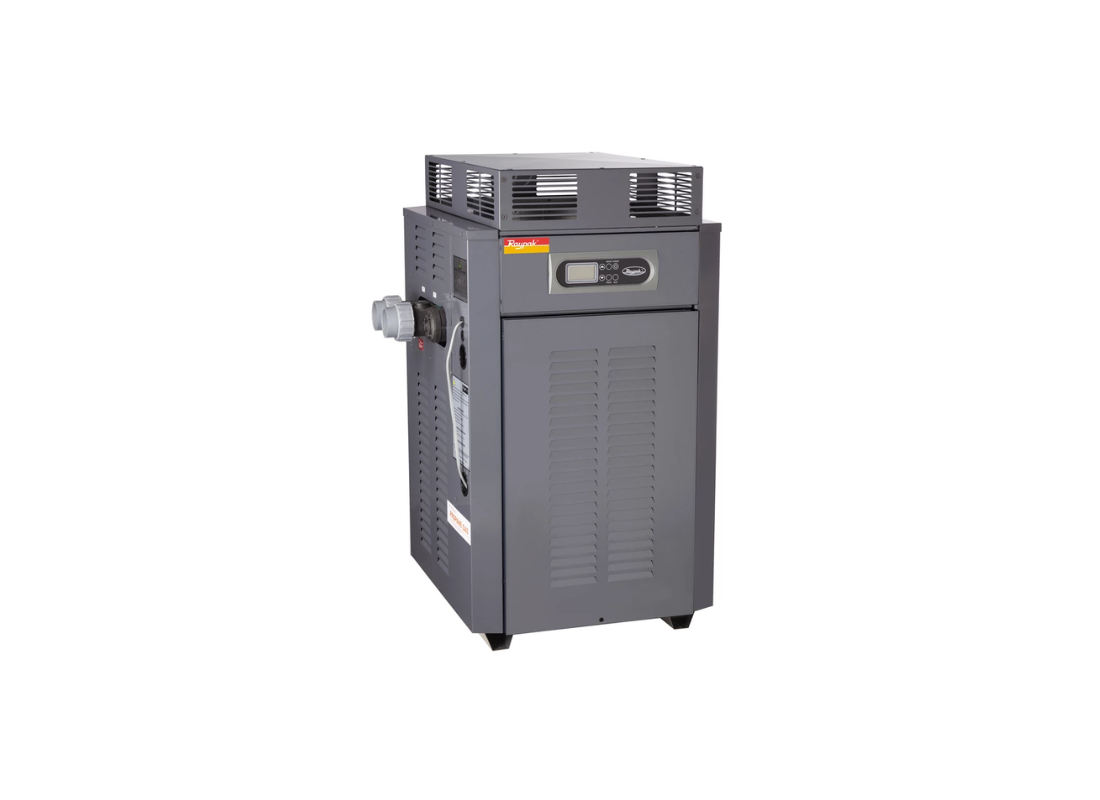

Waterco Raypak 280 LPG Gas Pool Heater for Aquatic Management with Cupro-Nickel Heat Exchanger

Constructed with a reinforced powder-coated all-metal casing, this liquid propane heater endures harsh environmental exposures without structural degradation. Combusting fuel via a 261 MJ/h gas input, it continuously delivers a reliable Heating Capacity of 58 kW across the filtration loop.

At the core of its thermodynamic performance sits a premium cupro-nickel heat exchanger, fashioned to optimize rapid thermal transfer. To secure operational longevity, the unit integrates specialized ProTek Shield technology. This active sacrificial anode attracts hidden galvanic corrosion away from highly vital internal heating metallurgy.

Hydraulic management is optimized through standard 50 mm inlet and 50 mm outlet connections, calibrated to securely support heavy fluid volumes. This configuration eliminates unnecessary burden on primary circulation pumps. Internal water flow is managed by resilient polymer headers that provide absolute resistance against chemical erosion.

Command over the aquatic climate is achieved via a modern microprocessor-driven thermostat, enabling operators to manipulate targeted temperature parameters. The digital interface incorporates active self-diagnostic capabilities, directly generating precise service codes should mechanical deviations occur, thereby ensuring operational safety.

• Total dry equipment mass registers perfectly at 75 kgs mandating a structural concrete foundation pad base for permanent stability.
• Physical exterior profile measures exactly 1055 mm in vertical height to safely accommodate the heavy-duty atmospheric venting draft mechanics.
• Lateral dimensional footprint strictly dictates a precise 640 mm physical width and an exact 653 mm structural installation depth for tight layouts.
• Safe combustion exhaust gas evacuation strongly mandates a specialized 200 mm diameter standard flue pipe connection port.
• Features a built-in automated pump run-on timer designed to continuously circulate cooling fluid post-combustion for heat core safety.
• Engineered with completely programmable internal child-lock functional controls to heavily prevent unauthorized thermal parameter adjustments by end users.

Warranty: 3 Years Parts / 1 Year Labour
