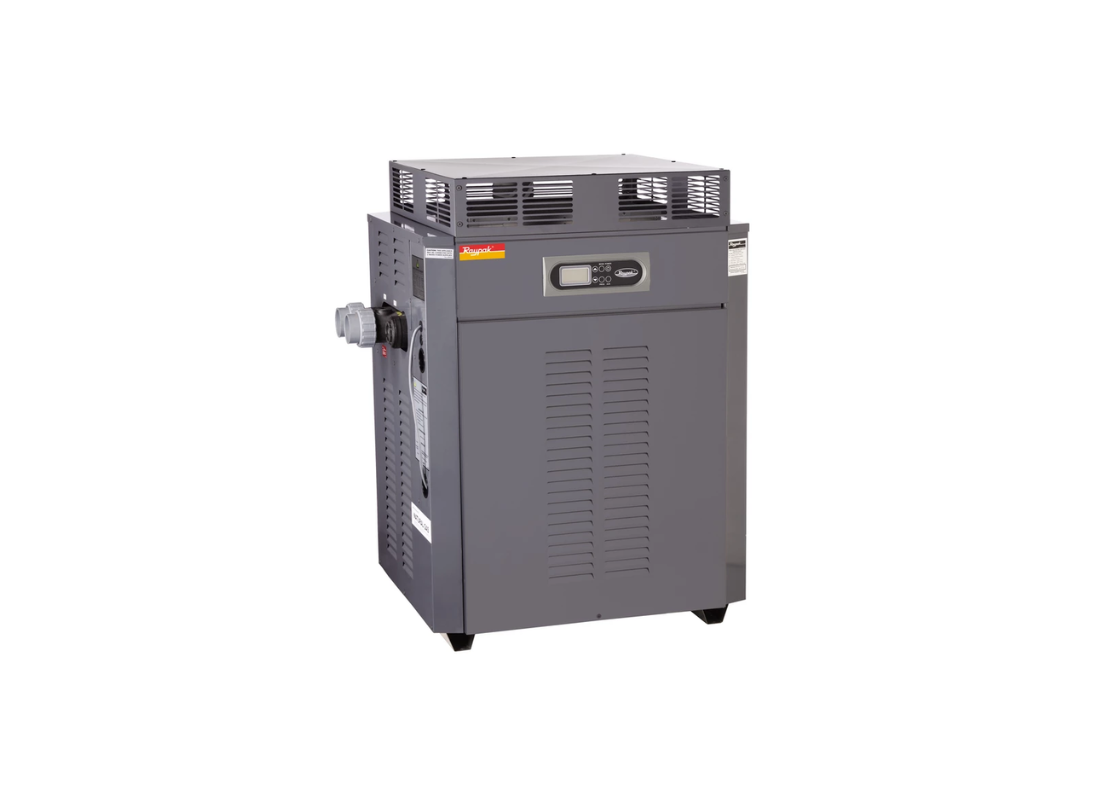

Waterco Raypak 430 LPG Gas Pool Heater for Resort Heating with Cupro-Nickel Heat Exchanger

Driven by incredibly stable hydraulic configurations and highly advanced thermodynamic behavior, this liquid propane unit flawlessly maintains exact thermal profiles across vast recreational complexes. Relying upon a 369 MJ/h gas input to cleanly combust stored fuel, the immense system delivers a robust Heating Capacity of 88 kW.

Internal fluid velocity pathways constantly ensure applied thermal energy is absorbed completely uniformly across the active internal heating surfaces. Circulation stability heavily relies upon 50 mm inlet and 50 mm outlet connections, strictly calibrated to securely accept exceptionally high volumetric liquid throughput from commercial facility primary filtration pumps.

Resilient heavy-duty polymer headers securely direct the massive internal fluid flow, totally eliminating the constant operational risk of destructive chemical oxidation. Protecting the vital mechanical architecture is a rigorously tested powder-coated all-metal exterior shell constructed specifically to continuously repel severely harsh atmospheric coastal conditions.

At the thermodynamic core, a premium cupro-nickel heat exchanger supported by an active ProTek Shield sacrificial anode completely resists aggressive aquatic salinity. System orchestration relies upon a microprocessor controller featuring an intuitive digital interface, allowing managers to instantly program strict thermal limits.

• Engineered equipment framework measures exactly 1055 mm in overall vertical height to safely accommodate secure atmospheric gas dispersion.
• Substantial lateral dimensions strictly specify a massive 870 mm structural width alongside a precise 653 mm mechanical installation depth.
• Requires a specialized 250 mm standard diameter atmospheric flue pipe for secure continuous combustion exhaust extraction from the facility.
• Substantial dry equipment mass measures exactly 90 kgs requiring a dedicated heavy-duty structural concrete foundation pad for safe mounting.
• Electronic control module instantly displays highly specific diagnostic service codes if internal mechanical parameters ever deviate from safe limits.
• Features incredibly energy saving hot surface ignition technology that entirely removes the costly necessity for a continuously burning pilot light.

Warranty: 3 Years Parts / 1 Year Labour
