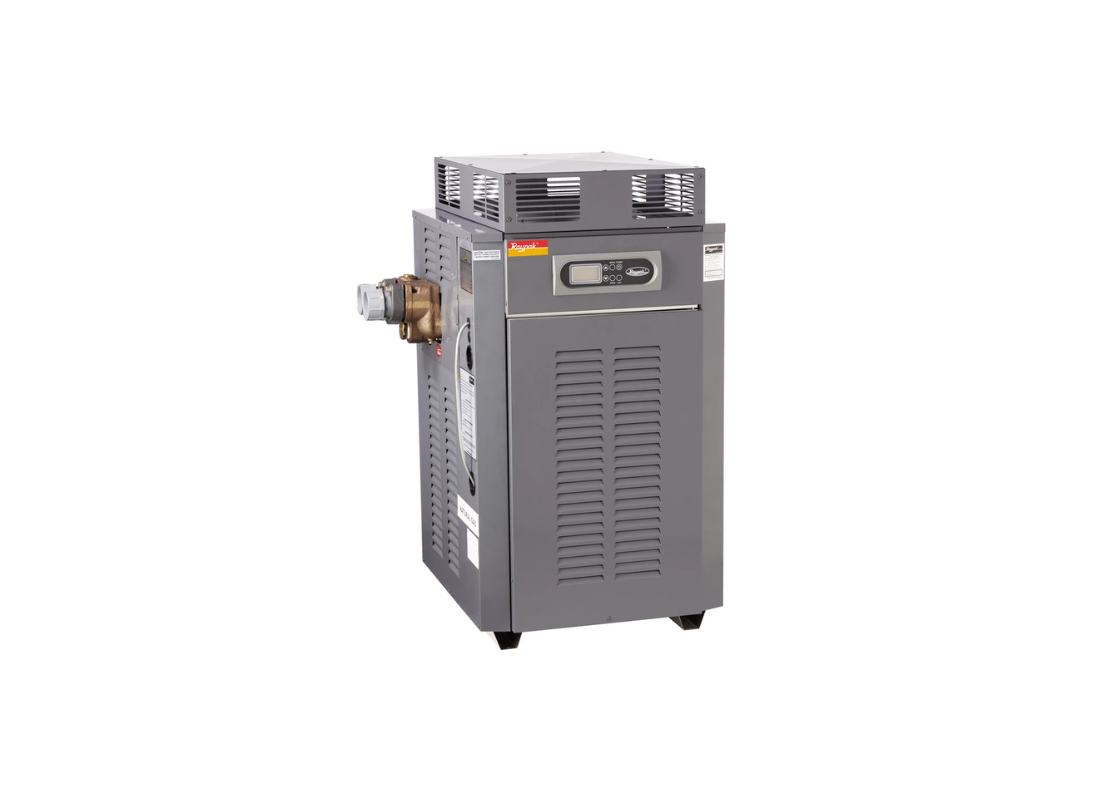

Waterco Raypak Comm 280 LPG Gas Pool Heater for Aquatic Management with Stainless Steel Base

Addressing operating costs across commercial facilities, this specialized liquid propane unit delivers a rapid thermal response. By combating severe environmental demands, the system minimizes slow cold starts. Utilizing a 261 MJ/h gas input, it effortlessly delivers a highly stable Heating Capacity of 58 kW directly into the primary hydraulic loop.

This commercial-grade unit integrates heavy-duty bronze headers to greatly increase temperature tolerance and resilience. A reinforced powder-coated all-metal exterior casing withstands corrosive outdoor environments without structural degradation. The entire internal combustion process is firmly stabilized by an incredibly strong stainless steel base.

Thermodynamic behavior heavily relies upon a premium cupro-nickel heat exchanger, crafted to completely maximize active thermal transfer while resisting commercial water variables. Fluid pathways strictly utilize 50 mm inlet and 50 mm outlet connections, securely handling heavy volumetric liquid throughput while minimizing restrictive pressure drops.

Thermal regulation is firmly governed by a modern microprocessor-controlled digital thermostat, actively granting exact electronic command over strict targets. The intuitive interface provides continuous service diagnostic monitoring. Built-in mechanisms ensure the burner securely terminates internal combustion if moving water flow drops below limits.

• Total dry equipment mass registers perfectly at 75 kgs mandating a heavy-duty structural concrete foundation pad base for stability.
• Physical exterior profile measures exactly 1055 mm in vertical height to safely accommodate the internal atmospheric venting draft mechanics.
• Lateral dimensional footprint strictly dictates a precise 640 mm physical width and an exact 653 mm structural installation depth.
• Safe combustion exhaust gas evacuation strongly mandates a specialized 200 mm diameter standard flue pipe connection port.
• Built specifically with an advanced stainless steel base structure to perpetually support intense commercial heating applications.
• Engineered with completely programmable internal child-lock functional controls to heavily prevent unauthorized thermal parameter adjustments.

Warranty: 3 Years Parts / 1 Year Labour (Commercial use)
