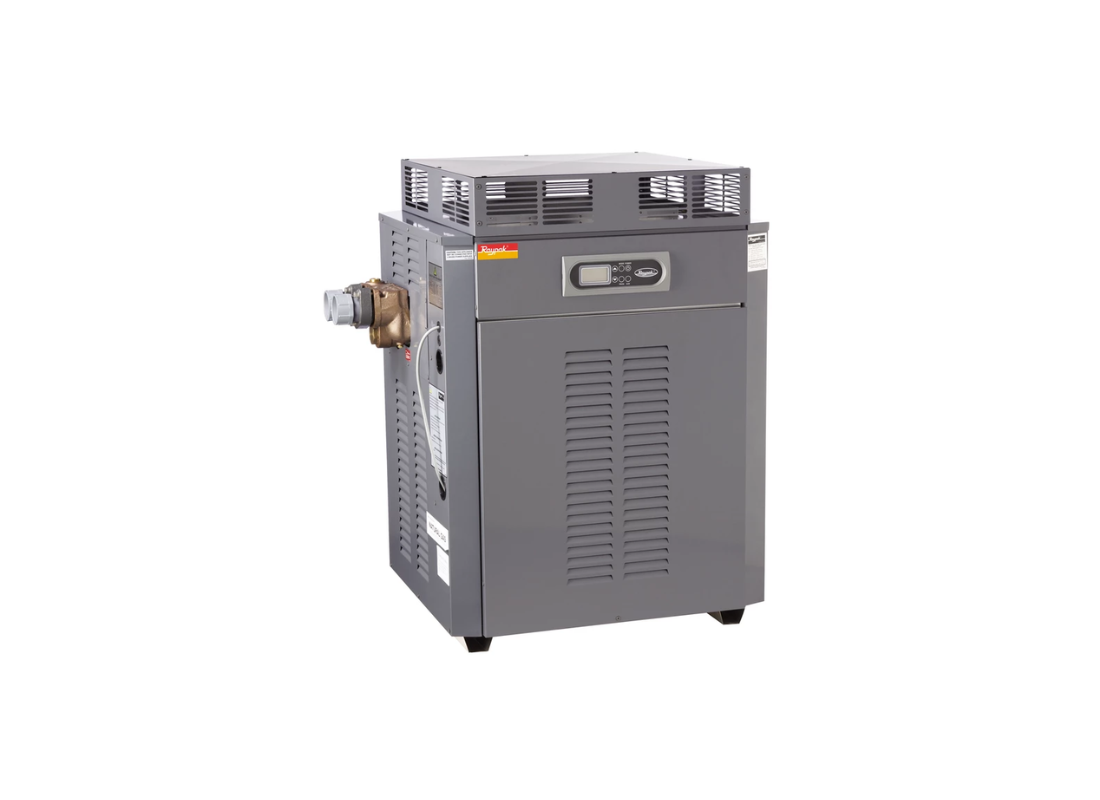

Waterco Raypak Comm 430 NG RW Gas Pool Heater for Complex Heating with Heavy-Duty Bronze Headers

Driven by a stable hydraulic configuration and advanced thermodynamic behavior, this natural gas unit maintains exact thermal profiles. Utilizing an immense 420 MJ/h gas input to cleanly combust fuel, the system delivers a Heating Capacity of 94 kW. Fluid velocity pathways ensure applied thermal energy is absorbed uniformly.

Addressing massive operating cost challenges, this premium industrial heater integrates highly durable bronze headers to dramatically increase high-temperature tolerance. A powder-coated all-metal exterior housing seamlessly withstands corrosive outdoor environments. The entire continuous combustion process is stabilized by a strong stainless steel base assembly.

Core circulation stability strictly relies upon 50 mm inlet and 50 mm outlet connections, calibrated to accept exceptionally high volumetric liquid throughput. At the structural center sits a premium cupro-nickel heat exchanger explicitly designed to securely handle heavy industrial demands while maximizing active thermal transfer into the commercial loop.

Facility climate orchestration is governed by a modern microprocessor thermostat, granting operators exact electronic command over strict climatic targets. The control module instantly displays highly specific diagnostic service codes if any internal mechanical parameters ever deviate from safe limits during continuous daily operation.

• Engineered equipment framework measures exactly 1055 mm in overall vertical height to safely accommodate secure atmospheric gas dispersion.
• Substantial lateral dimensions strictly specify a massive 870 mm structural width alongside a precise 653 mm mechanical installation depth.
• Requires a specialized 250 mm standard diameter atmospheric flue pipe for secure continuous combustion exhaust extraction from the facility.
• Substantial dry equipment mass measures exactly 90 kgs requiring a dedicated heavy-duty structural concrete foundation pad for safe mounting.
• Integrates heavily fortified bronze headers designed completely specifically for enhanced commercial temperature resistance and durability.
• Equipped natively with a heavy-gauge stainless steel foundational base perfectly engineered to support all primary combustion operations.

Warranty: 3 Years Parts / 1 Year Labour (Commercial use)
