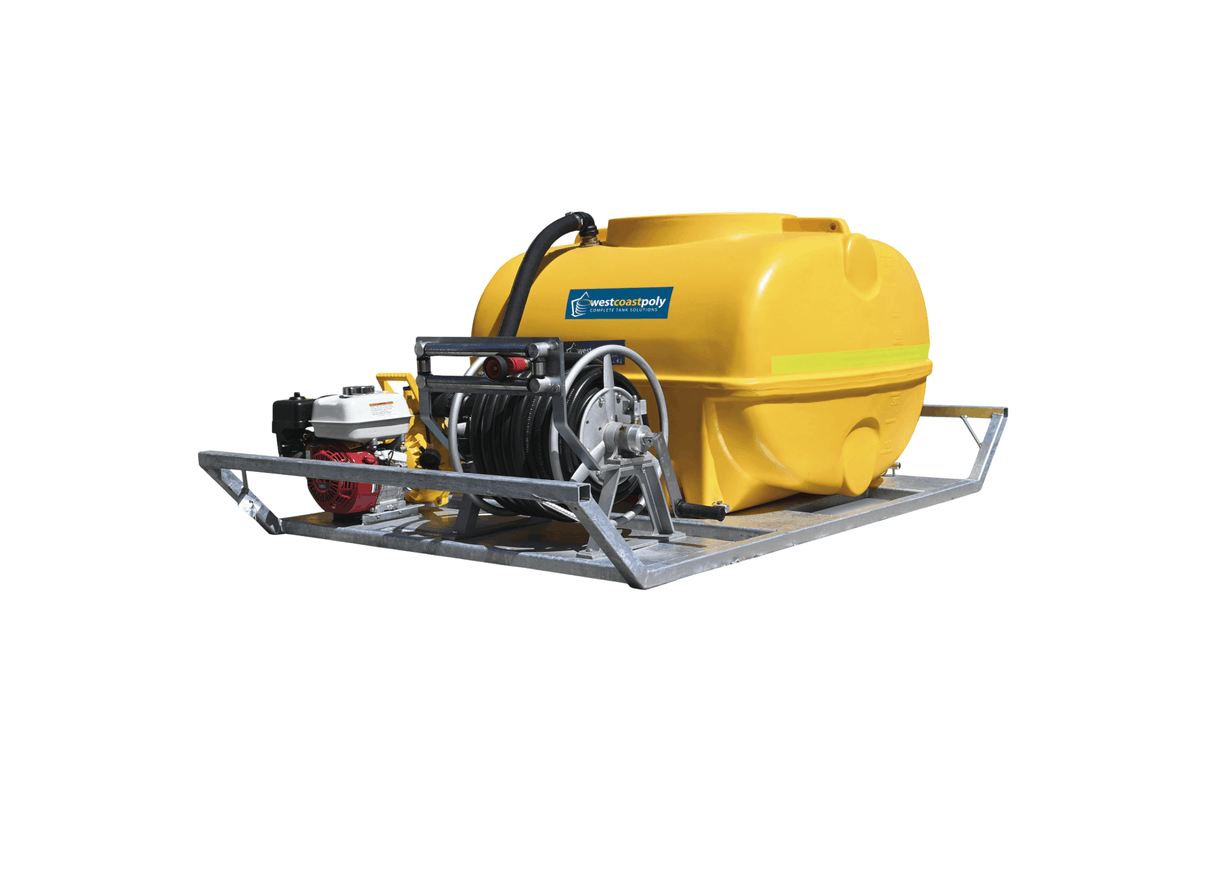

West Coast Poly WCP1000FR 1000L Skid Mounted Fire Responder with Honda GX160 Petrol Engine

Even weight distribution on truck trays is delivered by the low-profile West Coast Poly WCP1000FR Skid Mounted Fire Responder. Sized for rural landholders, land management agencies, and broadacre farming, this system is engineered for safe water transport. The low center of mass mitigates liquid surge effects on moving vehicles.

The water tank has a capacity of 1,000L and is manufactured from UV-stabilised polymer. Sized for industrial vehicles, the complete physical assembly measures approximately 1.50m in width, 1.80m in length, and 1.06m in height on its skid frame. This layout matches flat vehicle platforms, establishing base balance on steep or uneven tracks.

A 5.5hp Honda GX160 petrol engine is paired with a Davey 5155HV single impeller firefighter pump to drive the water transfer lines. The discharge section has a cast aluminium hose reel with manual winding and smooth guide rollers. This reel is loaded with a 30m x 25mm fire fighting hose that terminates in an adjustable flow spray nozzle.

The complete firefighter unit is bolted to a hot dipped galvanised steel skid frame with integrated cargo tie-down points. System plumbing uses 40mm or 50mm camlock quick connection fittings to simplify line routing. Self-filling is achieved via an included 6m suction hose with a foot valve. Standard colours Natural White, Yellow, or Red are available.

• Integrated sight level indicator allows direct visual assessment of remaining water volumes in the field.
• Available in Natural White, Yellow, or Red colours, with alternative colours on request for coordination.
• Inspection access is provided by a hinged screw top lid on top of the poly tank chamber.
• Cast aluminium hose reel has a manual lock and guide rollers to ease manual hose winding.
• Integrated tie-down slots are welded on the hot dipped galvanised skid base for flatbed transport.
• Camlock quick connection fittings in 40mm or 50mm sizes simplify direct suction connections.
• Suction assembly has a 6m hose and check foot valve to enable self-priming from open water sources.

Delivery is free within 800kms of us in Canning Vale.
