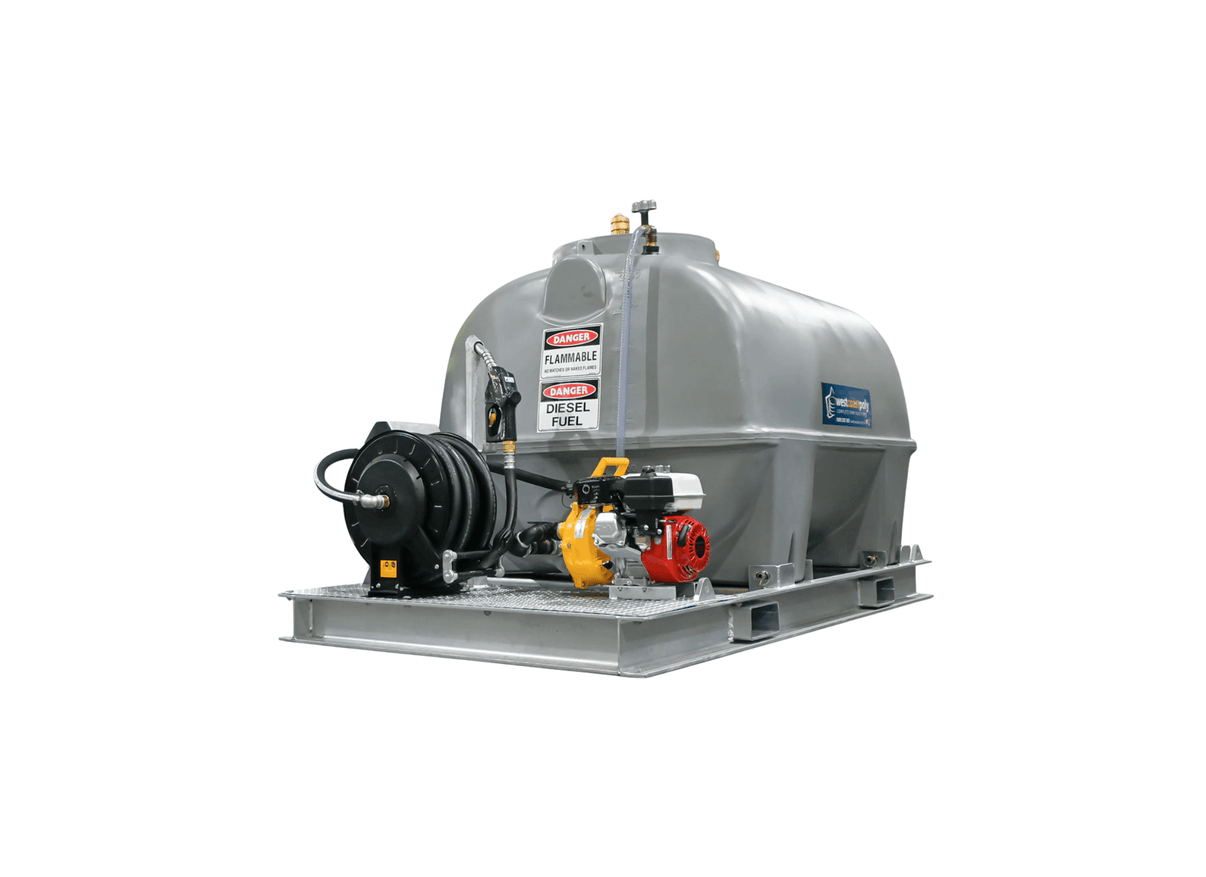

West Coast Poly WCP1000PPP 1000L Diesel Cartage Tank with Honda GX160 Petrol Engine

Refuelling site vehicles and farm machinery in remote agricultural areas is provided by the mobile West Coast Poly WCP1000PPP Diesel Cartage tank. Configured for fast on-site transfer, this performance pump pack system installs on utility vehicle tray beds. The complete skid assembly is structured for safe and fast transport on utility trays.

The diesel storage tank has a capacity of 1,000L and is roto moulded from specialised linear medium density polyethylene. This material formulation provides chemical compatibility with diesel fuel. Sized for utility flatbeds, the physical footprint of the complete skid assembly measures 1.13m in width and 1.83m in length on its frame.

The transfer pack utilizes a Davey 5155HV pump coupled with a 5.5hp Honda GX160 engine, providing diesel fuel flow rates up to 120 L/min. This refuelling assembly integrates a Water Captor 30 micron filter to catch fuel impurities. It is equipped with an auto shut-off nozzle and a 15m x 25mm hose on an auto-retractable reel.

Built on a hot dipped galvanised skid frame, the unit has a checker plate pump mount, side fork pockets, and dedicated lifting points. The liquid chamber is equipped with a 50mm fill line, a 40mm lockable drain valve, a sealed roof, a sight tube with an isolation valve, a twin vent breather, and a poly sealed lid.

Features

• The liquid tank is roto moulded from polyethylene for long-term chemical compatibility with diesel fuel.
• High-flow pumping assembly provides rapid fuel delivery of up to 120 L/min to on-site vehicles.
• Equipped with a Water Captor 30 micron filter element to remove fine sediment during discharge.
• Auto retractable hose reel contains a 15m x 25mm diesel delivery hose line for direct vehicle reach.
• Hot dipped galvanised skid frame features a checker plate pump mounting plate and side pockets.
• Equipped with a 50mm filling line and a 40mm lockable drain valve to control fluid paths.
• Integrated side forklift pockets and lifting lugs simplify mechanical loading on busy work sites.

Delivery is free within 800kms of us in Canning Vale.
