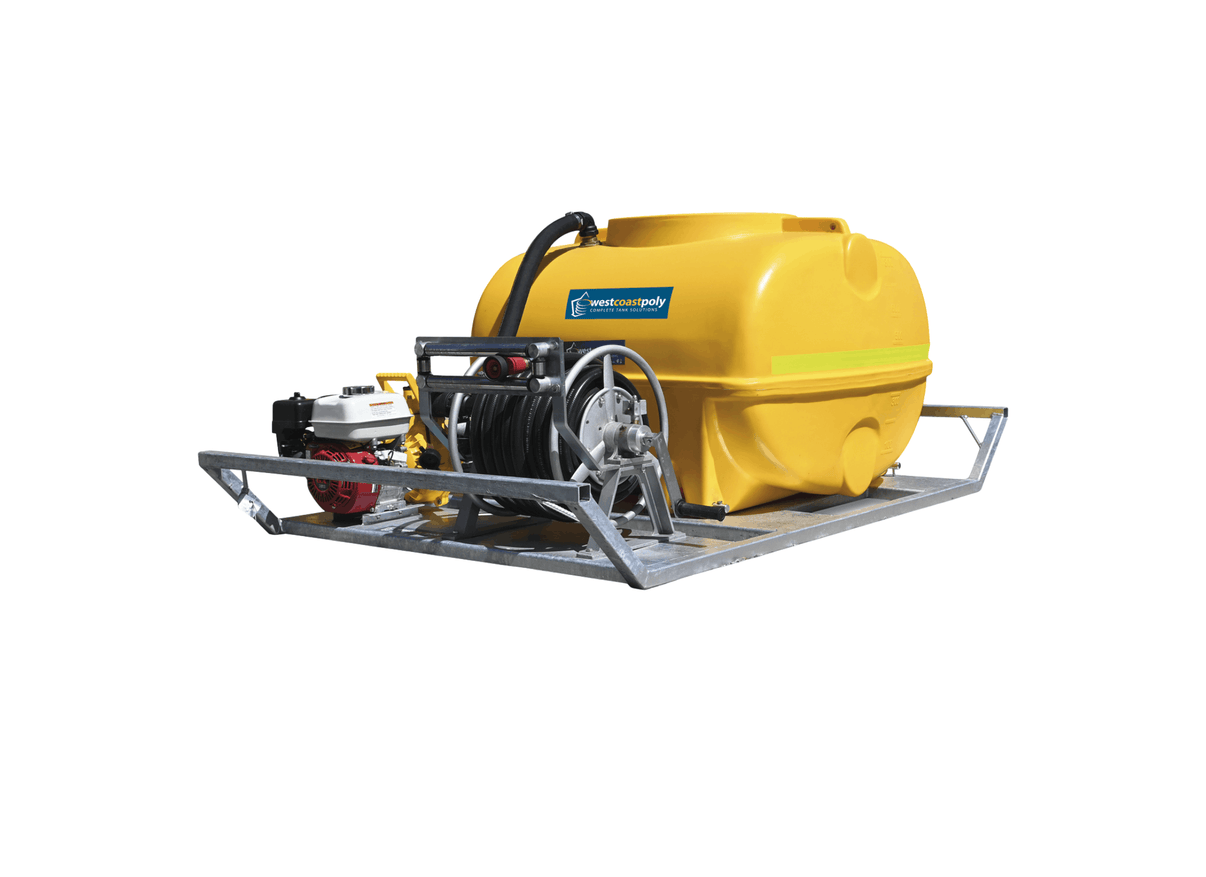

West Coast Poly WCP3000FR 3000L Skid Mounted Fire Responder with Honda GX160 Petrol Engine

Broadacre agricultural property protection, civil water transport, and emergency defence are served by the high-volume West Coast Poly WCP3000FR Skid Mounted Fire Responder. Sized for heavy truck trays, the low-profile tank geometry is configured to provide even weight distribution, helping to reduce lateral liquid surge during vehicle transit.

The water tank is constructed from UV-stabilised polymer with a physical volume of 3,000L. Sized for heavy truck trays, the physical footprint dimensions are approximately 2.50m in width, 2.86m in length, and 1.27m in height. Sled framing matches flat vehicle beds, providing base balance on rough tracks. The tank has no joins to eliminate leaks.

A Davey 5155HV fire pump is driven by a 5.5hp Honda GX160 engine for consistent high-output pumping. Sled discharge has a cast aluminium hose reel with a fast winding handle, manual reel lock, and smooth guide rollers. A 30m x 25mm fire hose is wound on the reel and coupled to an adjustable flow discharge nozzle for spray control in emergency zones.

The complete system is bolted to a hot dipped galvanised steel skid frame with integrated cargo tie-down locations. The plumbing manifold utilizes 40mm or 50mm camlock quick connection fittings for simple accessory routing. Water extraction is handled by an included 6m suction hose with a foot valve for self-filling. Custom skid options are available.

Features

• Calibrated sight level tube is built into the tank front for visual volume verification by the operators.
• Available in Natural White, Yellow, or Red colours, with alternative colours on request for coordination.
• Inspection access is provided by a hinged screw top lid on top of the poly tank chamber.
• Cast aluminium hose reel has a manual lock and guide rollers to ease manual hose winding.
• Integrated tie-down slots are welded on the hot dipped galvanised skid base for flatbed transport.
• Camlock quick connection fittings in 40mm or 50mm sizes simplify direct suction connections.
• Suction assembly has a 6m hose and check foot valve to enable self-priming from open water sources.

Delivery is free within 800kms of us in Canning Vale.
