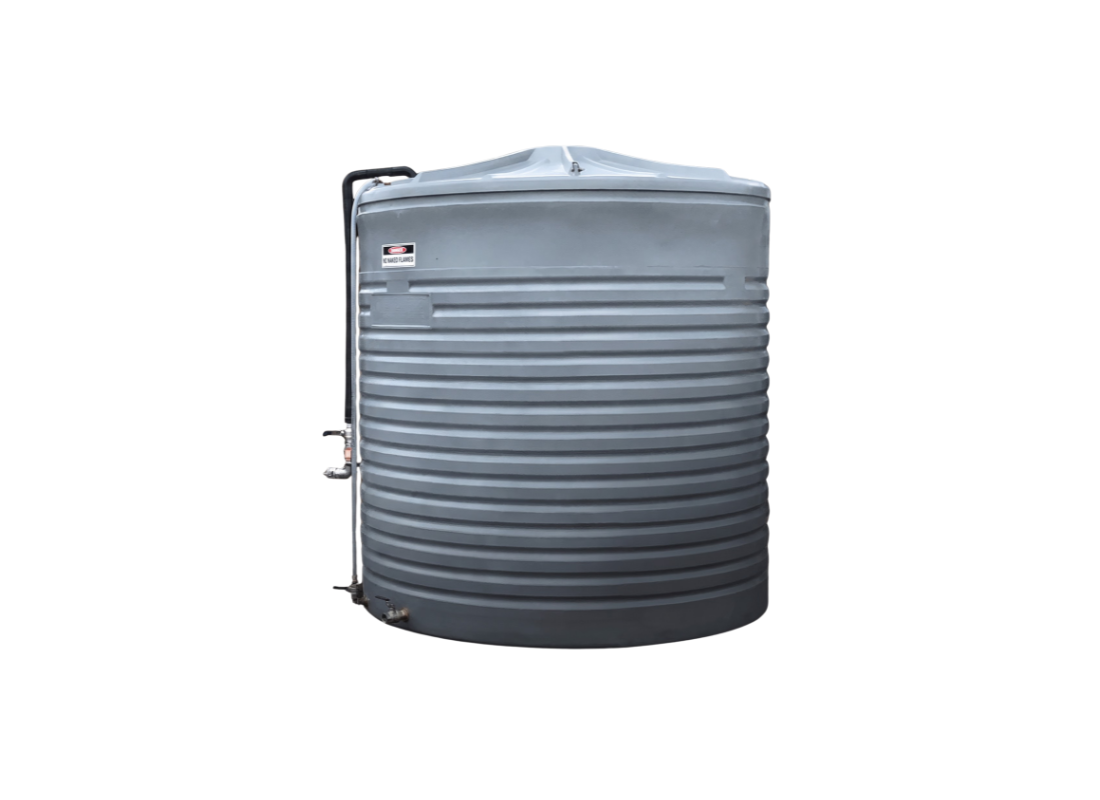

West Coast Poly WCP5000DS Polyethylene 5000 Liters Diesel Storage Tank

Forged directly from high-density linear medium density polyethylene, the single-piece structural envelope completely avoids mechanical joints or inherent weak points. The heavy-walled outer shell resists intense solar degradation and physical wear, making the unit highly suited for permanent outdoor stationary placement on leveled concrete foundations across industrial and heavy agricultural zones.

Serving as an unpowered bulk holding asset, the vessel safely accommodates a massive 5000 Liters of combustible liquid. The overall physical boundary occupies exactly 1930 millimeters in diameter while extending to an apex measurement of 2170 millimeters, optimizing vertical space while maintaining a highly stable center of gravity during peak fluid saturation levels.

To address strict workplace hazard guidelines, the complete system complies fully with the AS1940:2017 regulatory framework for combustible fluid holding. The enclosed geometry integrates a fully sealed roof structure, establishing complete isolation from rain, airborne dust, and severe environmental contaminants that could otherwise degrade the internal fuel supply over extended storage cycles.

Liquid transfer operations occur entirely via gravity mechanics or compatible external pump integration, bypassing any need for complex internal electrical components. Operators manage the stored payload through specified extraction pathways, establishing highly controlled, steady dispensing into heavy machinery or secondary transport vessels directly on the active worksite.

Features

• Integrated 50mm dedicated filling line
• Primary 40mm lower lockable drain valve
• Clear volume level visual sight tube
• Secondary isolation tap on monitoring tube
• 80mm relief port with vermin-proof screening
• Specialized twin vent diesel breathing mechanism
• Pre-installed static grounding earth cable
