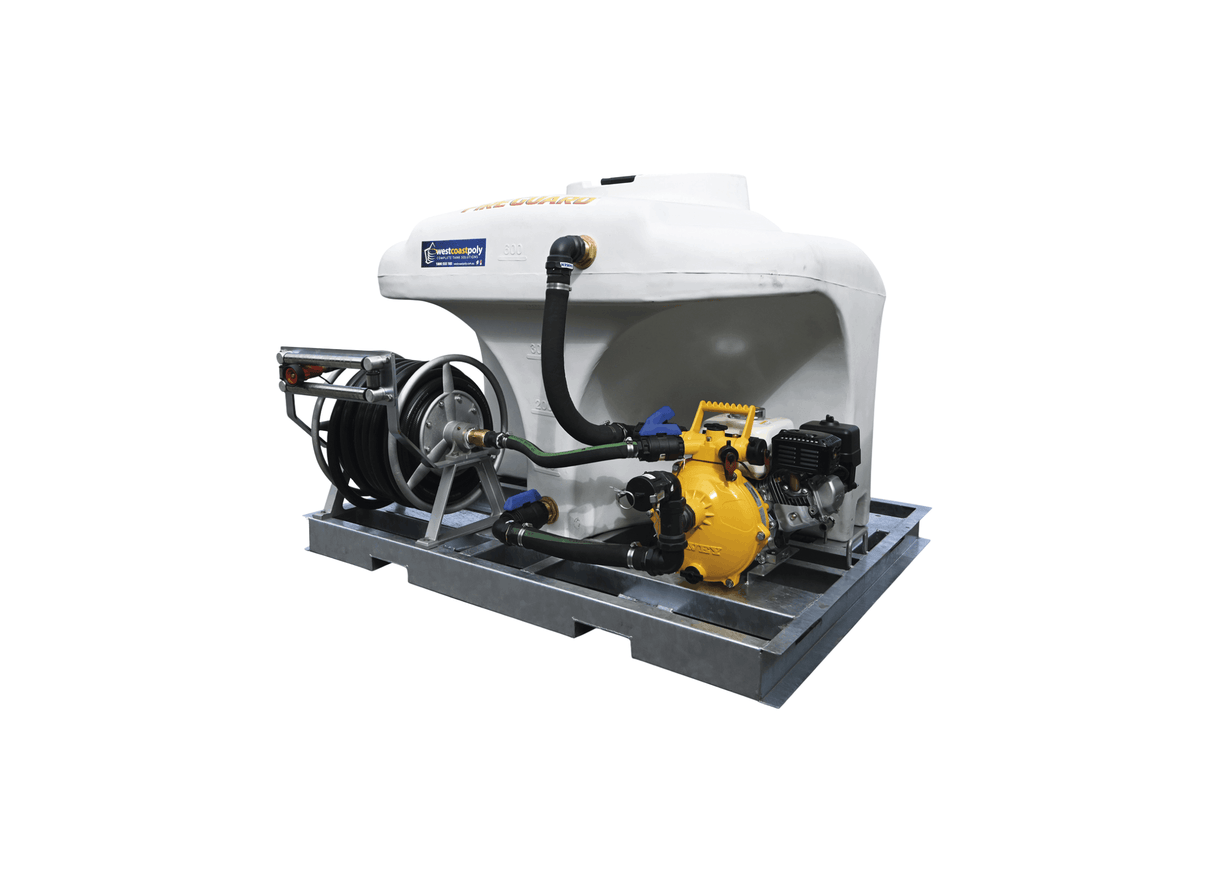

West Coast Poly WCP600FF 600L Compact Fire Fighting Unit with Honda GX160 Petrol Engine

Active property protection in rural areas is provided by the West Coast Poly WCP600FF Compact Fireguard unit. Sized for slip-on utility vehicle tray mounting, this mobile system serves for landholder defence and on-farm water transfer. The layout profile fits standard utility beds and trailer trays, facilitating rapid transit to boundary lines.

Constructed from polymer, the liquid tank holds a physical volume of 600L of water. The complete skid assembly dimensions measure 1.50m in width, 1.20m in length, and 1.115m in height. Sized for light flatbed vehicles, the flat configuration coordinates weight across the vehicle tray, promoting tray balance under transport movement.

Pumping capability is delivered by an integrated Davey 5155HV single impeller firefighter pump. A 5.5hp Honda GX160 petrol engine powers this transfer system. A cast aluminium hose reel contains a 30m x 25mm hose with an adjustable flow nozzle. The reel has an integrated manual spool lock to inhibit hose rotation during transport.

The complete firefighter unit is bolted to a hot dipped galvanised steel skid frame with side fork pockets and front lift points. Plumbing connections utilize 40mm camlock quick connection couplings. An included 6m suction hose with an integrated foot valve is supplied for self-filling from dams. Access is via a hinged screw top lid.

• Features a 40mm tank drain port to allow complete liquid evacuation from the storage chamber.
• Cast aluminium hose reel has guide rollers to reduce manual winding friction after operations.
• Plumbing connections utilize standard 40mm camlock quick connection couplings on suction inlet ports.
• Galvanised steel skid includes front and side fork tine pockets for forklift loading maneuvers.
• A hinged screw top lid is installed on the inspection hatch to cover the internal mesh filter.
• Hose reel manual lock is integrated on the frame to stop drum rotation during vehicle movement.
• Included 6m suction hose has a heavy foot valve to stop fluid backflow during priming.

Delivery is free within 800kms of us in Canning Vale.
