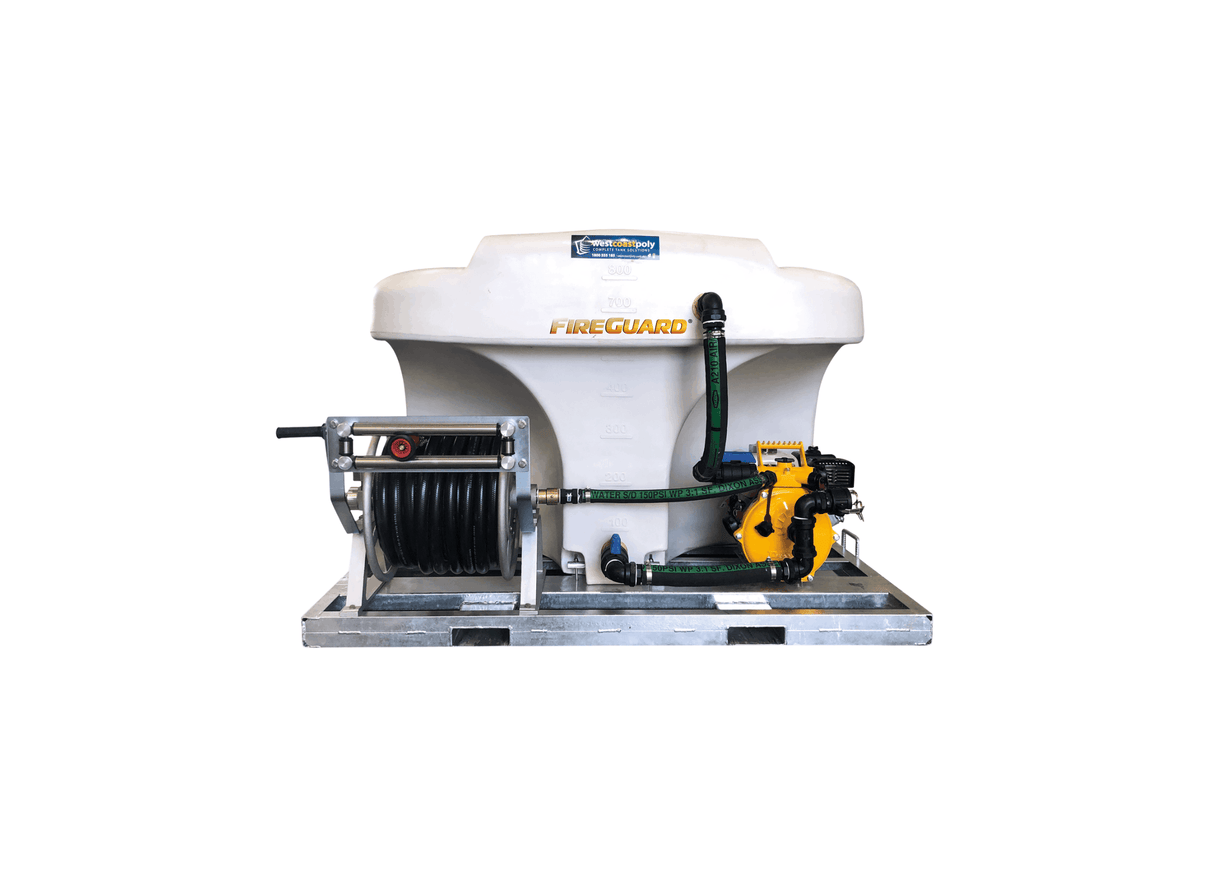

West Coast Poly WCP800FF 800L Compact Fire Fighting Unit with Honda GX160 Petrol Engine

For landholders requiring transportable fire protection, the West Coast Poly WCP800FF Compact Fireguard unit is configured for utility vehicle tray beds. Sized for slip-on installation on utes or light trailers, intended applications include property protection, land management, and on-farm water transfer.

The water tank is constructed from polymer with a physical volume of 800L. Sized for light flatbeds, the footprint of this complete skid assembly measures 1.50m in width, 1.20m in length, and 1.160m in height. This shape provides water cargo storage in a flatbed layout. The single-piece tank composition holds the liquid load without internal joins.

Pumping is performed by an integrated Davey 5155HV pump. This single impeller firefighter pump operates with a 5.5hp Honda GX160 petrol engine to drive water discharge. The system features a cast aluminium hose reel containing a 30m x 25mm hose and an adjustable flow nozzle. The reel has an integrated manual spool lock to stop hose rotation.

Built on a hot dipped galvanised steel skid base, the unit has integrated front and side fork tine lifting points. Suction plumbing utilizes 40mm camlock quick connection fittings. An included 6m suction hose with a foot valve is supplied to enable tank self-filling from dams or reservoirs. Access is provided by a hinged screw top lid.

• Integrated 40mm tank drain port allows complete liquid evacuation from the storage chamber.
• Cast aluminium hose reel has guide rollers to reduce manual winding friction after operations.
• Plumbing connections utilize standard 40mm camlock quick connection couplings on suction inlet ports.
• Galvanised steel skid includes front and side fork tine pockets for forklift loading maneuvers.
• A hinged screw top lid is installed on the inspection hatch to cover the internal mesh filter.
• Hose reel manual lock is integrated on the frame to stop drum rotation during vehicle movement.
• Included 6m suction hose has a heavy foot valve to stop fluid backflow during priming.
