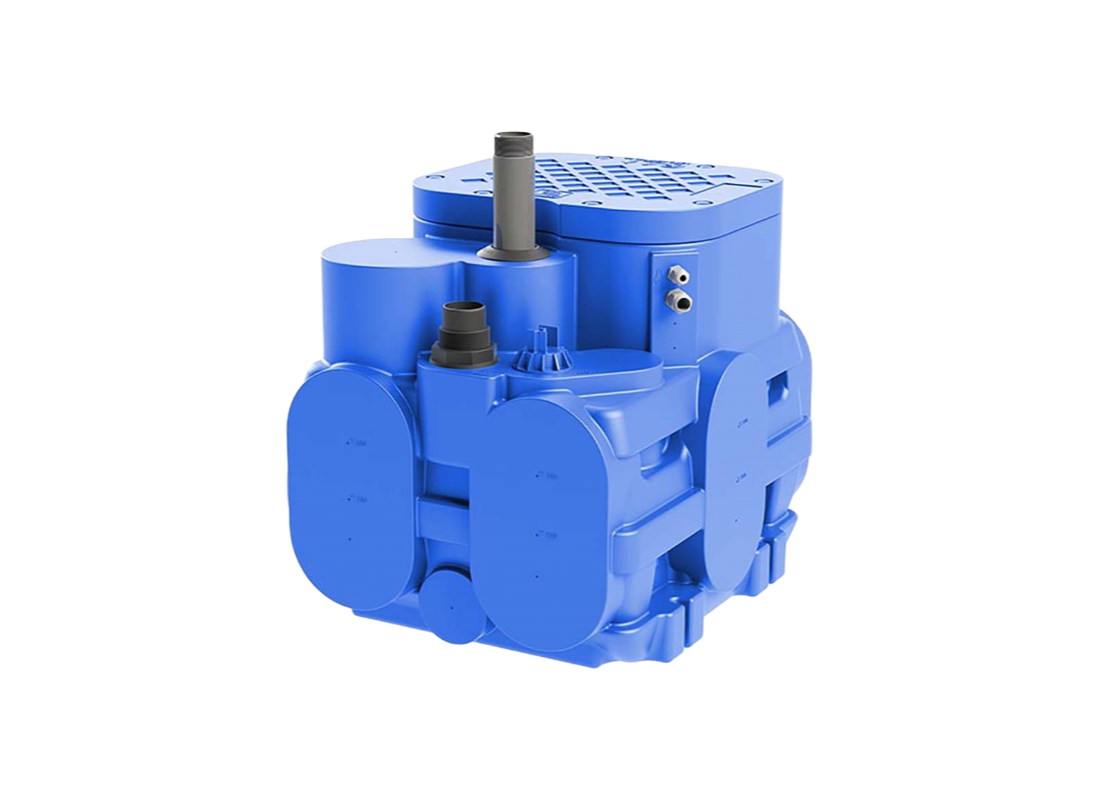

Zenit blueBOX 60 Polyethylene Compact Wastewater Lifting Station for Basin Drainage with Vortex Pump Compatibility

Collecting and elevating domestic wastewater from residential fixtures is highly efficient with the Zenit blueBOX 60 collecting station. Engineered to operate in environments where standard gravity-fed drainage is unavailable, this compact unit serves as a dependable utility for basement suites, laundry facilities, and utility rooms.

This lifting station is supplied without a pump. Designed as a standalone polyethylene vessel, the system is engineered to work in conjunction with high-efficiency Zenit DG-Blue submersible drainage pumps. Since this configuration is supplied as a bare collecting tank, hydraulic performance is determined by the specific single-phase pump selected, with compatibility spanning models from 0.30 kW to 0.74 kW.

Solid handling within the station is expertly managed via the set-back vortex hydraulics of the compatible pump series, which easily pass suspended solids up to 40 mm. The physical layout incorporates a pre-machined vertical discharge pipework configuration utilizing standard 1½" (40 mm) nominal PVC pipe connections for leak-free, high-pressure operation.

Construction features a rotomoulded high-density polyethylene reservoir with a total storage capacity of 60 litres, presenting high resistance to mechanical impacts and chemical corrosion. Designed for a continuous liquid temperature of 40°C, the durable tank can also manage short hot-water washing machine cycles up to 80°C for a maximum duration of 3 minutes.

Features

• Sturdy 60-litre rotomoulded polyethylene reservoir for impact-resistant wastewater containment.
• Standardised vertical discharge pipework pre-machined for 1½" (40 mm) nominal PVC system connection.
• Submersible motor chamber compatibility designed specifically for optimal thermal heat dissipation.
• Innovative cable gland interface actively preventing external liquid and odour leakage from the seal.
• Flexible inlet flat surfaces on the tank sides for custom multi-directional pipe routing.
• Robust rubber gaskets supplied for quick, airtight sealing around the incoming drainage pipelines.
• Moulded lifting handles integrated into the outer structure for stable, easy transport and positioning.

Backed by a 1 Year warranty.
