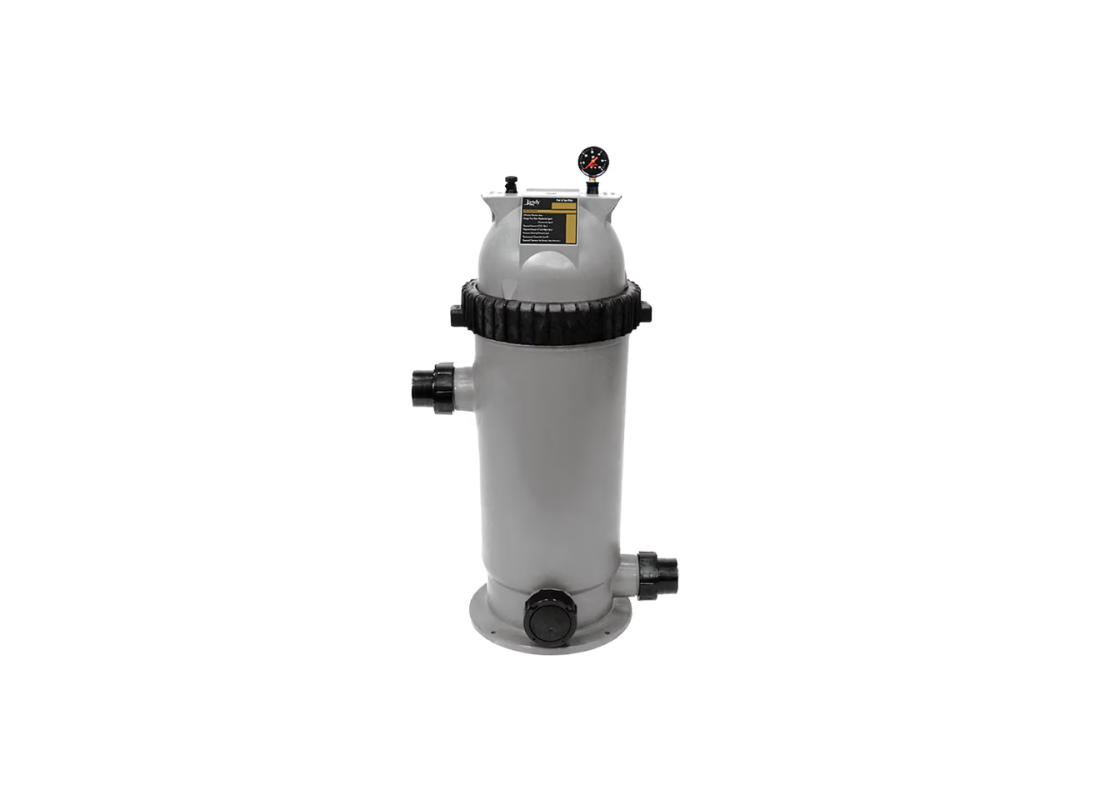

Zodiac CS100 Compact Cartridge Pool Filter with 9.0 m² Remay Single Element Filtration

Ideal for small to medium-sized Australian residential pools, this compact filtration unit provides an optimal solution for homeowners seeking crystal clear water without the large footprint of multi-media systems. It operates efficiently in standard backyard environments, handling daily debris loads with ease to maintain a pristine swimming area. The design focuses on delivering a better way of life by removing the hassle of complex pool maintenance.

Performance is driven by a maximum flow rate of 379 L/Min and a robust working pressure rating of 345 kPa. The 9.0 m² filter area is specifically sized to ensure stable hydraulic turnover rates while minimizing energy consumption from the primary circulation pump. These specifications allow for a total six-hour turnover capacity of 136,800 litres, suitable for diverse domestic installations.

Utilizing a single-element cartridge made of premium Remay material, the system traps fine particles between 10 to 20 microns to ensure sparkling results. This high-efficiency media configuration eliminates the need for water-wasting backwashing, saving approximately 750 litres per cleaning cycle compared to traditional sand filters. The unique fibre design ensures long service life and superior dirt-holding capacity.

The tank is manufactured from high-impact, UV-resistant thermoplastic to ensure long-term durability in harsh outdoor conditions. Maintenance is streamlined with ergonomic easy-grip handles for simple lid removal and 50mm drain ports for rapid servicing. An integrated pressure gauge featuring a clean/dirty snap ring indicator allows for effortless monitoring of the filter's operational status.

• Premium Remay™ cartridge material ensures superior 10 to 20 micron filtration for finer debris capture.
• Corrosion and UV resistant thermoplastic tank body withstands the most extreme Australian operating environments.
• Ergonomic easy-grip handles allow for simple, tool-free lid removal during routine element inspections.
• Integrated pressure gauge with a clean/dirty snap ring provides instant visual maintenance status.
• Large 50mm drain ports facilitate rapid water discharge during servicing or seasonal system winterization.
• Compact 375mm width design enables installation in confined equipment pads and tight spaces.
• Universal 51mm x 56mm unions offer flexible plumbing integration for varied pool equipment configurations.
• Strong mountable base ensures the filter remains stable and secure on the equipment pad during operation.

The Zodiac CS 100 Cartridge Filter is covered by a 5-year warranty on the filter tank and a 1-year warranty on the multi-port valve and internal components, including O-rings, gaskets and gauges.
