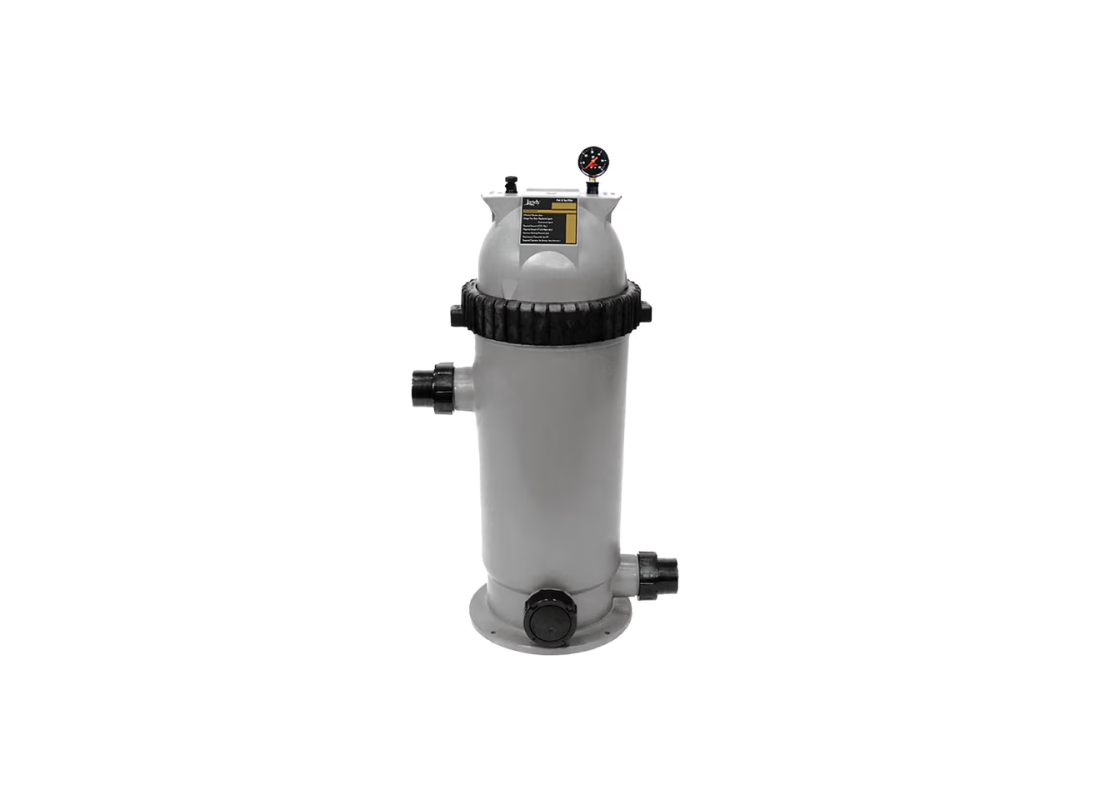

Zodiac CS150 Water Efficient Cartridge Pool Filter with 13.9 m² Remay Element Technology

Designed for modern residential pool configurations, this water-efficient filtration unit prioritizes environmental responsibility and superior water clarity. By removing the need for traditional backwashing, the system saves thousands of litres of water every year, making it a sustainable choice for Australian families. It serves as a reliable solution for maintaining pristine conditions in high-use domestic environments.

The system provides a steady maximum flow rate of 473 L/Min supported by an expansive 13.9 m² filtration area for improved hydraulic efficiency. With a maximum working pressure of 345 kPa, it maintains stable circulation patterns even as the cartridge collects fine contaminants. This allows for an eight-hour filtration capacity of 228,000 litres, providing excellent water turnover.

Filtration efficiency is driven by internationally recognized Remay fibres that trap the smallest debris particles. The single-element design is engineered for easy removal, allowing users to simply hose down the cartridge and return it to service in minutes. This process provides much finer filtration than standard sand filters, which typically only capture particles between 25 and 40 microns.

The robust housing is manufactured from corrosion-proof thermoplastic to ensure durability in extreme operating environments. Easy-to-use ergonomic locking rings and universal unions streamline the installation and maintenance process for pool owners. The 822mm height and compact 370mm footprint ensure the unit fits comfortably on standard equipment mounting pads.

• High-grade Remay™ cartridge fibres trap fine debris down to 10 microns for cleaner pool water.
• Water-efficient operation eliminates backwashing to save up to 750 litres per cleaning cycle.
• Reinforced thermoplastic tank construction resists chemical degradation and intense UV exposure.
• Ergonomic locking rings facilitate quick and easy access to the internal element for servicing.
• Integrated 50mm drain ports allow for efficient tank flushing and rapid winterization procedures.
• Universal 51mm x 56mm unions ensure compatibility with standard Australian pool plumbing systems.
• Easy-to-read pressure gauge with clean/dirty snap ring provides clear maintenance cues.
• Space-saving 375mm body width allows for installation in narrow equipment enclosures.

The Zodiac CS 150 Cartridge Filter is covered by a 5-year warranty on the filter tank and a 1-year warranty on the multi-port valve and internal components, including O-rings, gaskets and gauges.
