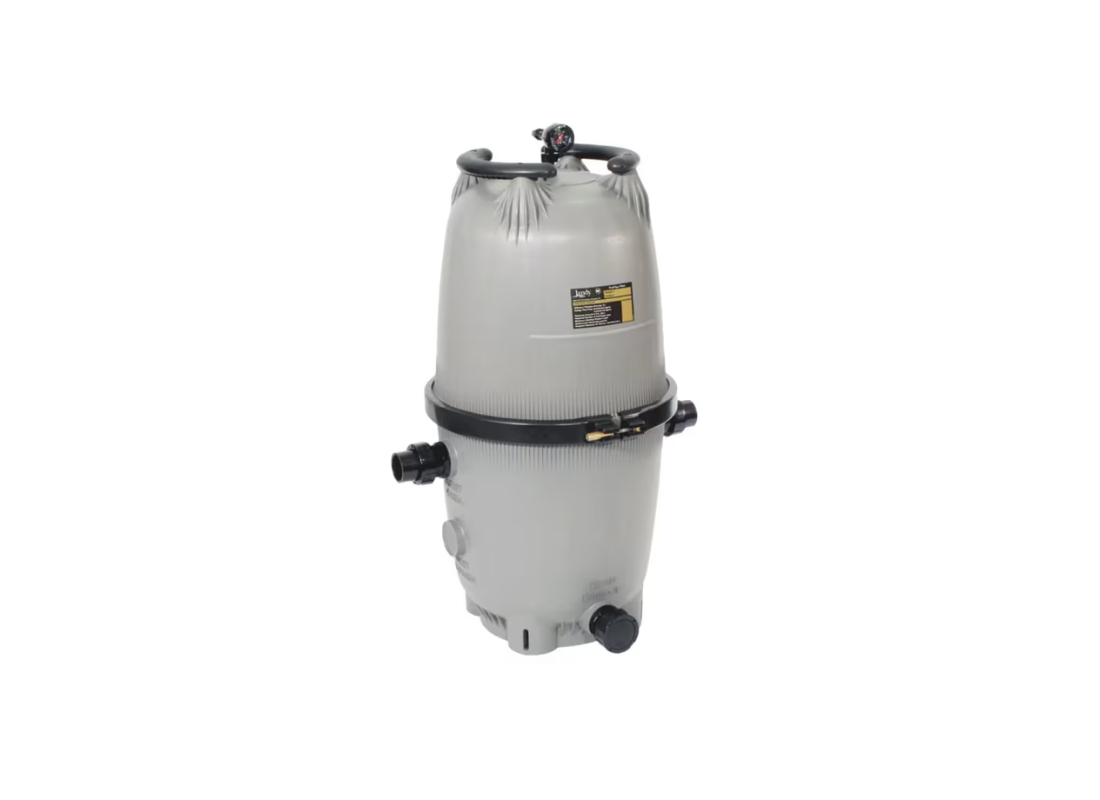

Zodiac CV340 Superior Performance Cartridge Filter with 26.5 m² Cluster Element Design

Engineered for large-scale residential pool environments, this cluster cartridge filtration system is specifically suited for installations exceeding 60,000 litres. It provides a superior way of life for Australian families by delivering high-flow performance while maintaining a compact footprint for restricted equipment pads. The design prioritizes water clarity and effortless management for high-demand backyard setups.

Performance is characterized by a maximum flow rate of 480 L/Min and a robust maximum working pressure of 345 kPa. With a significant 26.5 m² total filter area, the system manages a six-hour turnover capacity of 173,069 litres. These specifications ensure stable hydraulic circulation and efficient turnover cycles even in large-volume swimming pool configurations.

The filtration process utilizes multiple cartridge elements made of premium Remay materials to trap fine debris between 10 to 20 microns. This cluster configuration provides much finer filtration than traditional sand filters, which typically only capture particles down to 25 microns. The water-efficient design eliminates backwashing, saving approximately 750 litres of water during every routine cleaning cycle.

The unit is constructed from heavy-duty, corrosion-resistant polymeric materials designed for long-lasting outdoor service. Maintenance is simplified through a rigid tank clamp for secure body attachment and ergonomic easy-grip handles for tool-free internal access. The system includes 50mm drain ports and a clear pressure gauge with an integrated clean/dirty snap ring for instant maintenance alerts.

• Cluster element configuration utilizes multiple cartridges for optimum hydraulic performance and clarity.
• Premium Remay™ filtration media traps fine particles down to 10 microns for sparkling pool water.
• Water-efficient operation eliminates the need for backwashing, saving thousands of litres annually.
• Heavy-duty polymeric tank construction provides maximum resistance to UV and chemical degradation.
• Heavy-duty rigid tank clamp ensures the filter body remains securely in place during high-pressure operation.
• Ergonomic easy-grip handles facilitate simple and comfortable lid removal for element servicing.
• Integrated pressure gauge with a clean/dirty snap ring allows for immediate visual status monitoring.
• Extra-large 50mm drain ports enable rapid water discharge for efficient tank flushing and maintenance.

The Zodiac CV 340 Cartridge Filter is covered by a 5-year warranty on the filter tank and a 1-year warranty on the multi-port valve and internal components, including O-rings, gaskets and gauges.
