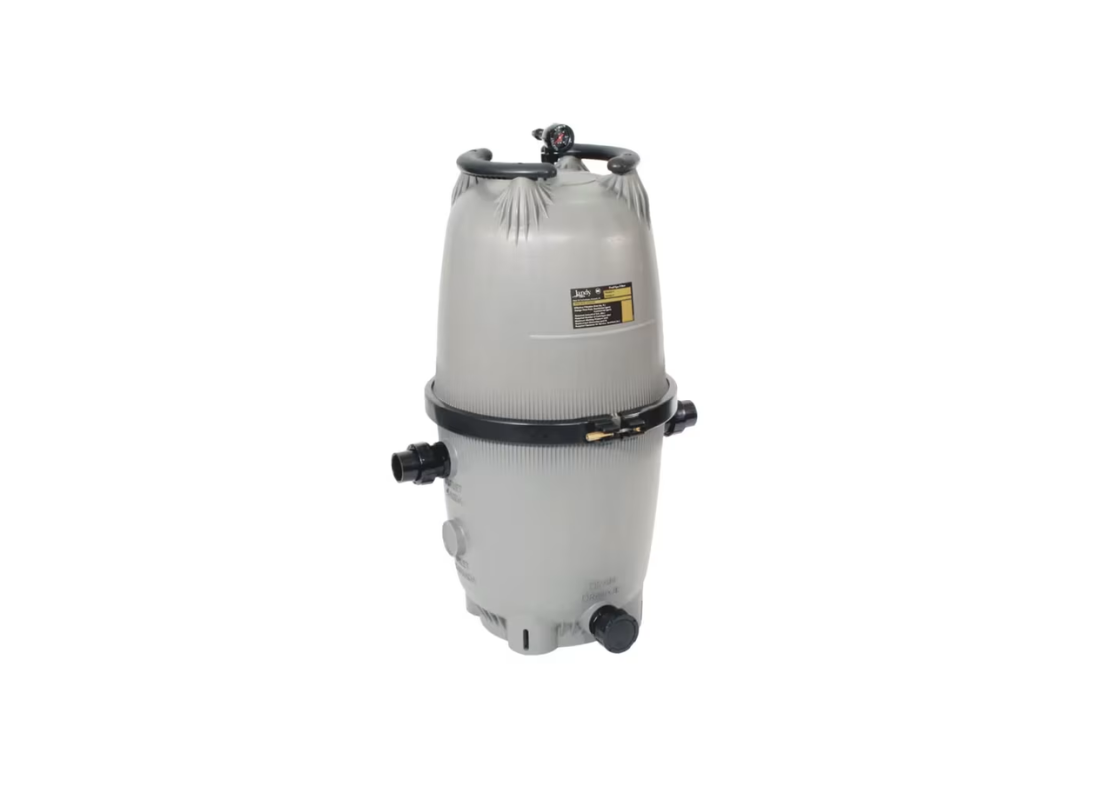

Zodiac CV460 Large Capacity Cartridge Filter with 42.7 m² Multiple Element Cluster

Designed for premium residential pool applications, this high-capacity cluster filter provides an environmentally responsible solution for maintaining pristine water conditions. It is ideal for large pools that require high flow rates and extended service intervals without the water waste associated with sand filtration. The compact design allows for seamless integration into modern, space-restricted pool equipment enclosures.

The system delivers a powerful maximum flow rate of 568 L/Min and is engineered to operate at a maximum working pressure of 345 kPa. Featuring an expansive 42.7 m² filtration area, the unit achieves a total eight-hour turnover capacity of 272,550 litres. This increased surface area significantly reduces the frequency of manual cleanings by distributing debris across multiple elements.

Efficiency is driven by a cluster of four high-grade Remay elements that capture contaminants as small as 10 microns for superior water transparency. Because the system does not require backwashing, it prevents the loss of thousands of litres of chemically treated water every year. Users simply hose down the internal elements to maintain peak hydraulic performance and circulation efficiency.

Structural durability is provided by a corrosion-proof polymeric body designed to withstand the harshest Australian operating environments. The filter features a strong base for secure mounting on equipment pads and optional anchor brackets for additional stability. A heavy-duty rigid tank clamp and universal unions ensure a leak-free installation and straightforward maintenance for the homeowner.

• Expansive 42.7 m² filter area utilizes a four-element cluster for high-efficiency debris collection.
• Superior Remay™ material construction captures particles between 10 to 20 microns for total clarity.
• Sustainable filtration design removes the need for backwashing to conserve water and chemicals.
• Heavy-duty, UV-resistant polymeric housing ensures long-term performance in extreme conditions.
• Rigid tank clamp design provides a heavy-duty seal to keep the filter body securely locked.
• Ergonomic handles are designed for a comfortable grip during installation and element cleaning.
• Large 50mm drain ports and easy-to-read pressure gauge simplify routine filter maintenance tasks.
• Strong equipment pad mounting base provides a stable foundation for high-capacity pool setups.

The Zodiac CV 460 Cartridge Filter is covered by a 5-year warranty on the filter tank and a 1-year warranty on the multi-port valve and internal components, including O-rings, gaskets and gauges.
