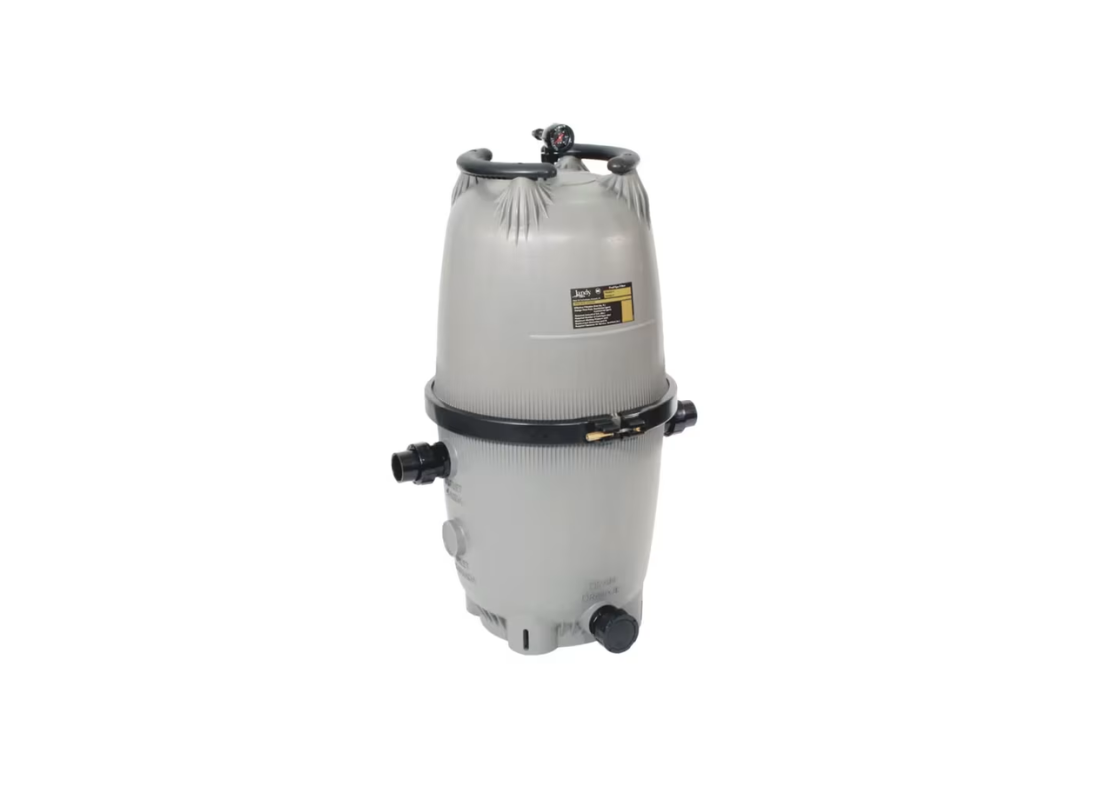

Zodiac CV580 Ultra Capacity Cartridge Filter with 53.88 m² Cluster Element Media

Specifically engineered for the most demanding residential pool environments, this ultra-capacity cluster filter offers a robust solution for maximum water clarity and high turnover rates. It is perfectly suited for large-volume pools where maintaining a crystal-clear bather environment is a priority. The attractive, compact design ensures it delivers professional-grade results within a space-efficient backyard installation.

Performance is characterized by a high maximum flow rate of 568 L/Min and a 345 kPa maximum working pressure. The massive 53.88 m² total filtration area allows for an eight-hour turnover capacity of 272,550 litres, making it one of the most capable residential filters available. This scale of filtration surface ensures minimal hydraulic resistance and maximum energy efficiency for the pump.

The system utilizes four large cluster cartridges made of premium Remay fibers that trap the finest debris particles between 10 to 20 microns. By taking advantage of the massive surface area, the unit provides extended cleaning cycles and reduces the velocity of water passing through the media for better capture. This eco-friendly alternative to sand filters requires zero backwashing for a cleaner environment.

Constructed from heavy-duty, corrosion-resistant polymeric materials, the tank is built to weather intense UV exposure and chemical treatment. User convenience is prioritized with an ergonomic lid removal system, extra-large 50mm drain ports, and a pressure gauge with a clean/dirty snap ring. The robust base is designed for secure mounting to equipment pads to prevent movement during operation.

• Massive 53.88 m² filtration area significantly extends the intervals between element cleanings.
• Premium Remay™ cluster cartridges provide high-efficiency 10 to 20 micron particle capture.
• Water-efficient system removes the backwash requirement, saving roughly 750 litres per clean.
• Durable, heavy-duty polymeric tank body is designed for maximum longevity and UV resistance.
• Rigid heavy-duty tank clamp ensures a secure and leak-proof seal for the main filter body.
• Ergonomic easy-grip handles make lid removal and element access effortless for homeowners.
• Integrated 50mm drain ports facilitate rapid water discharge for winterization or servicing.
• Strong mountable base provides maximum stability on standard equipment mounting pads.

The Zodiac CV 580 Cartridge Filter is covered by a 5-year warranty on the filter tank and a 1-year warranty on the multi-port valve and internal components, including O-rings, gaskets and gauges.
