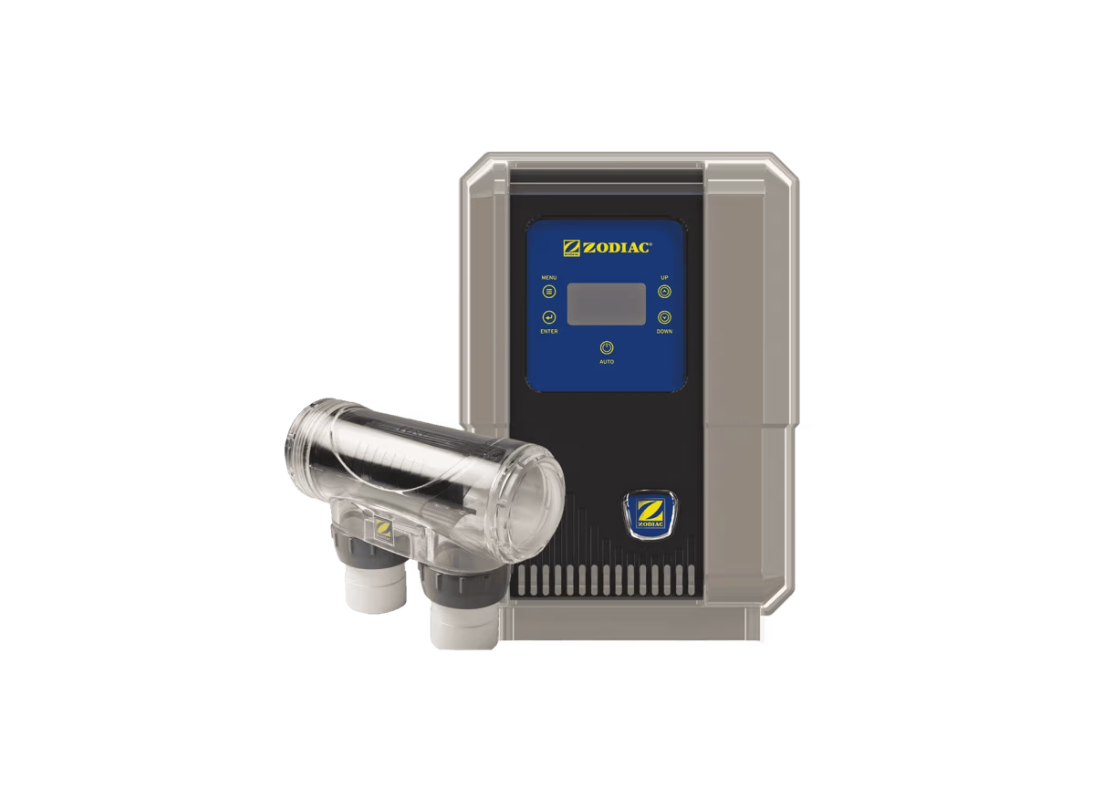

Zodiac EL-25 Saltwater Chlorinator for Automated Sanitisation Pathways with Built in Clock

The EL-25 model efficiently handles primary operational loads through a rigorous electrolytic sanitation process. Functioning as the core asset for inline microbiological control, the Zodiac EL 25 Saltwater Chlorinator connects directly to filtration loops to systematically eradicate organic contaminants. This automated architecture provides chemical stability while completely bypassing manual handling.

The active cell continuously produces a reliable chlorine output of approximately 25 g/hr. This specific metric is engineered to secure hygienic baselines for bodies of water holding up to 80,000 litres in cooler climates, whilst preserving crystalline clarity for pools reaching volumes of 40,000 litres throughout demanding warm weather applications.

To extend its service lifespan, the array relies on a self-cleaning reverse polarity cycle that strips away forming calcium scale from the plates. The internal circuitry strictly mandates a recommended operating salinity of 6,000 ppm for peak efficiency but features the dynamic capability to function within a wider chemical gradient ranging from 4,000 to 8,000 ppm.

Structural installation is supported by versatile inlet and outlet manifolds built to couple with standard 40 mm and 50 mm pipeway. Running smoothly on a standard 240 V supply, the robust outer shell shields all critical timing components, cementing long-term operational security.

Features

• Incorporates an integrated clock and timing module to schedule regular aquatic filtration cycles.
• Features a dedicated chlorine output selector allowing precise incremental adjustments tailored to seasonal shifts.
• Supplied with two 50 mm barrel unions and corresponding reducers to facilitate straightforward plumbing connection.
• The primary power pack module measures precisely 225 mm in width, 325 mm in length, and 133 mm in height.
• The transparent housing surrounding the active electrolytic cell allows direct visual inspection of internal water flow.
• Manufactured using highly durable external materials structurally rated to withstand harsh environmental degradation over time.

Warranty: 2 Years
