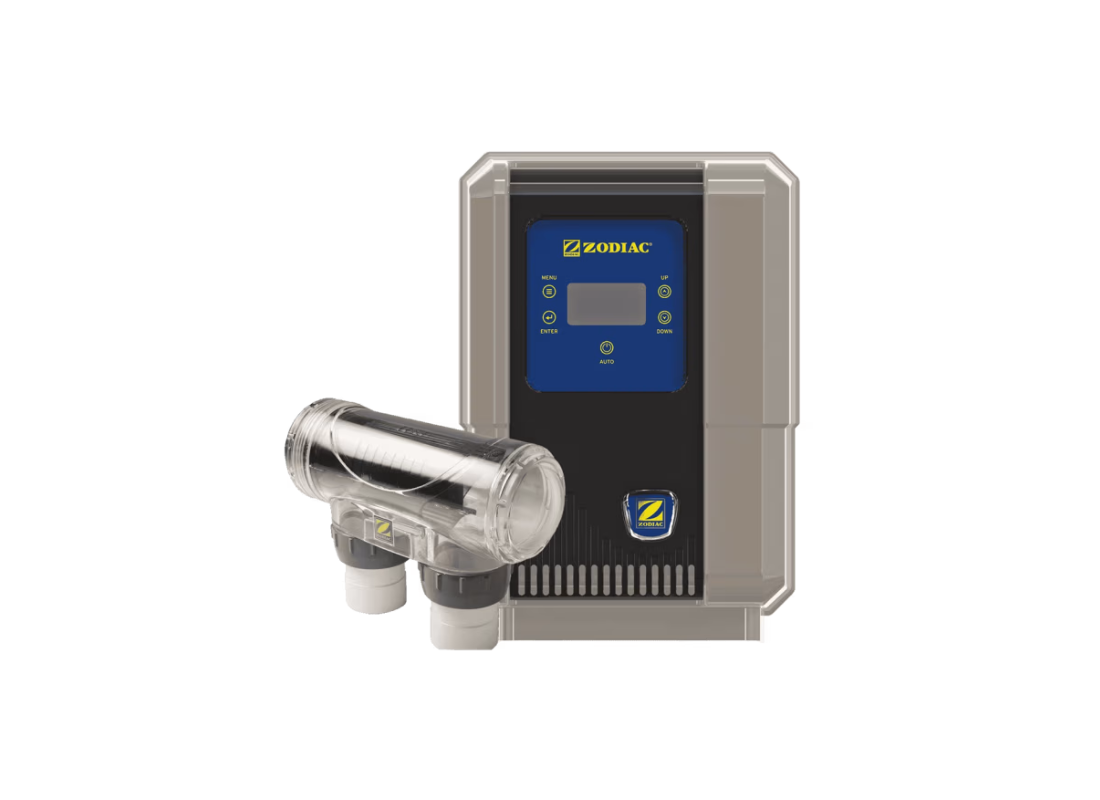

Zodiac EL-35 Saltwater Chlorinator for Residential Water Chemistry Balancing with Output Selector

Constructed with a durable external casing, the EL-35 model guarantees absolute structural reliability. As a cornerstone for residential water chemistry balancing, the Zodiac EL 35 Saltwater Chlorinator removes the need for manual dosing. Connected directly into the circulation pathway, this automated unit actively neutralises microbiological threats, ensuring the swimming environment remains impeccably safe year-round.

The upgraded titanium array pushes a heavy chlorine output production of exactly 35 g/hr. This elevated generation metric easily services larger aquatic layouts holding up to 120,000 litres in cooler climates. In tropical zones with high evaporation, the system dynamically preserves pristine chemical clarity for pools measuring up to 75,000 litres.

To prevent performance degradation, the unit triggers a self-cleaning reverse polarity protocol to shed scale from the plates. The infrastructure requires a recommended operating salinity of 6,000 ppm, while maintaining the capability to produce sanitiser continuously within a gradient of 4,000 to 8,000 ppm.

Installation is highly adaptable, featuring an inlet and outlet manifold precisely sized for standard 40 mm and 50 mm PVC pipelines. Supplied by a standard 240 V electrical input, the sophisticated primary controller flawlessly orchestrates chemical dispersal alongside the main hydraulic flow.

Features

• Equipped with an adjustable output selector to fine-tune active chemical generation in response to shifting seasonal demands.
• Designed with fully programmable integrated timers to automatically coordinate daily filtration activation cycles.
• The physical dimensions of the active generation cell measure accurately at 320 mm in width, 155 mm in length, and 110 mm in height.
• Packaged securely alongside a comprehensive owner’s manual providing explicit mechanical setup and maintenance directives.
• Features an entirely transparent chamber section to immediately identify internal flow inconsistencies or blockages.

Warranty: 2 Years
